Compact Cool AW Kit (4-Fin / Slimline Hose)

[Takegawa 07-07-0267 Compact Cool AW Kit (4-Fin/Slimline Hose) for Ape50 Ape100 XR50 Motard XR100 Motard with Big Bore Cylinder TAKEGAWA]
■Product Description
This oil cooler kit can be installed when a SP Takegawa big bore cylinder is equipped.
Features slimline hoses.

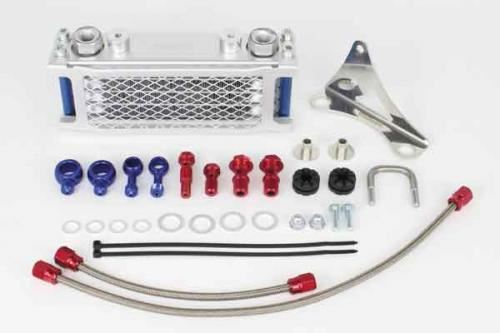

・Compact Cool AW (4 fins, 5 oil lines)
This compact oil cooler comes standard with an oil cooler plate and an oil cooler guard.

・Oil Extraction Method
Oil extraction is possible by installing an SP Takegawa big bore cylinder equipped with a standard oil extraction port.

■Compatible Models
Ape50 (AC16-1000001〜1599999)
Ape50 (FI) (AC16-1600001〜/AC18-1000001〜)
Ape100 (HC07-1000001〜/HC13-1000001〜)
XR50 Motard (AD14-1000001〜)
XR100 Motard (HD13-1000001〜)
*For vehicles equipped with SP Takegawa big bore cylinders

■Notes
*This kit is exclusively for vehicles equipped with SP Takegawa big bore cylinders (compatible with big fin ceramic plated cylinders).
*For Ape100 (HC07-1600001〜/HC13-1000001〜) with a stock muffler, oil cannot be extracted from the big bore cylinder.
*Cannot be installed on stock cylinders.
*When adding oil, add 60cc to the specified oil quantity.

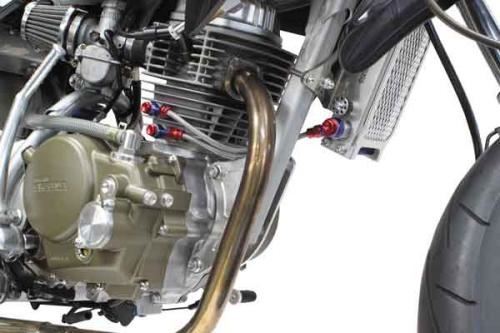

*The image is for illustration purposes only. It includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
