Compact Cool Kit 4 Fin/Braided Hose #4 Monkey 125

【SP Takegawa 07-07-0271 Compact Cool Kit 4 Fin/Blade Hose #4 Monkey 125 Oil Cooler Cooling Engine Parts Takegawa】
■Product Description
This product is intended for vehicles equipped with SP Takegawa's S-Stage Big Throttle Body Bore Up Kit or Super Head 4V+R Bore Up Kit.
The cooler body of this product has 4 fins and 5 oil lines.
*This product requires a specific engine specification. Please check that your engine matches the specifications below before purchasing.
●Target Engine Specification
This product is intended for vehicles equipped with SP Takegawa's S-Stage Bore Up Kit with Big Throttle Body, or Super Head 4V+R Bore Up Kit.
Since the normal air cleaner box must be removed, it is necessary to install SP Takegawa's big throttle body.
Also, since an oil outlet for the oil cooler is required, it is necessary to install a bore up cylinder with an oil outlet boss.
Therefore, it cannot be installed on e-stage bore up kits that do not have an oil outlet boss.
●When installing this product on a normal throttle body specification
If your vehicle is equipped with a bore up cylinder with an oil outlet boss, you can install this product by purchasing SP Takegawa's air filter kit for normal throttle bodies separately.
In this case, re-setting of the injection controller will be necessary.

■Detailed Description
This oil cooler kit is intended for vehicles equipped with SP Takegawa's S-Stage Bore Up Kit 181cc with Big Throttle Body or Super Head 4V+R Bore Up Kit 181cc.

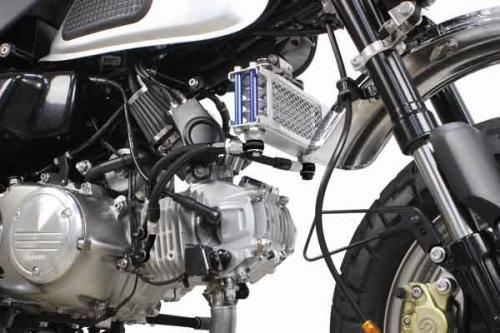

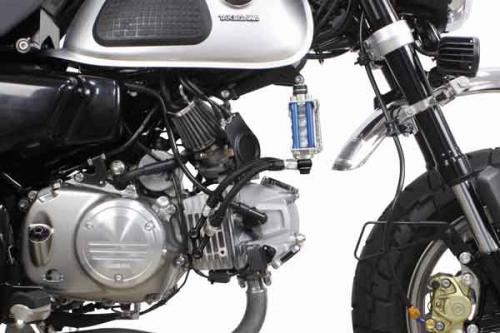

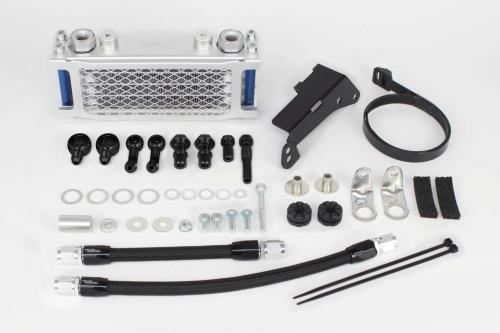

This product removes the genuine air cleaner box, attaches the included oil cooler stay under the frame, and secures the oil cooler body.
This allows you to achieve the same style as previous Monkey customs.
Oil is supplied to the oil cooler from the oil outlet boss of the all-aluminum ceramic plated cylinder used in SP Takegawa's S-Stage Bore Up Kit 181cc or Super Head 4V+R Bore Up Kit 181cc.

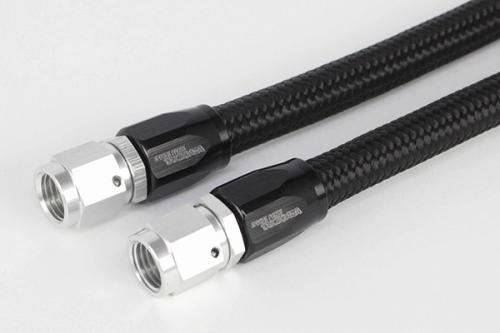

●Blade Hose #4 adopted
This is a nylon blade hose with an outer diameter of φ11mm, ideal for small vehicles.
In addition, since it has an inner diameter of φ5.6mm, it reduces the burden on the oil pump.
Nylon blade hoses are lightweight and flexible, offering excellent freedom of routing.
When installed, the black blade hose tightens up the vehicle's appearance.

■Compatible Models
HONDA
Monkey 125 (JB02-1000001～)

■Specifications
Type: 4 Fin/Blade Hose #4
Target: Vehicles equipped with SP Takegawa's S-Stage Bore Up Kit with Big Throttle Body, or Super Head 4V+R Bore Up Kit
Target Cylinder Head: Normal cylinder head
Number of Stages on Oil Cooler Body: 4 fins 5 oil lines
Oil Hose Type: Blade Hose #4

■Precautions
*Images are for illustration purposes only. Includes items with different sizes and colors.
*Product design and specifications may change without prior notice. Please understand.
*Please add 40cc for 3 fins and 60cc for 4 fins to the normal specified oil quantity.
*When installing simultaneously with a normal head tappet cap, a separate collar set is required.
*In the case of Monkey 125, it cannot be installed simultaneously with the normal muffler/SP Takegawa up muffler.
*This product is made-to-order, so cancellations after ordering are not possible.
*As this is a made-to-order product, delivery may take some time. Also, please note that the manufacturer may discontinue the product or change its specifications without prior notice.
