Compact Cool AW Kit 3-Fin/Rubber Hose Magna 50

【SP武川 07-07-0285 Compact Cool AW Kit 3-Fin/Rubber Hose Magna 50 Oil Cooler Cooling Engine Parts Takegawa】
■Product Description
This oil cooler kit is for vehicles equipped with a SP Takegawa special clutch kit.
3-fin 4-oil line.
An oil outlet must be purchased separately.

■Detailed Description

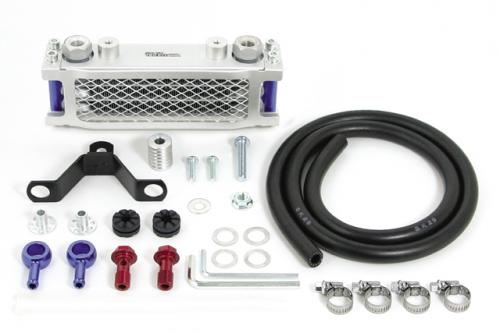

●Compact Cool AW (3-Fin 4-Oil Line)
This is a compact oil cooler with an oil cooler plate and oil cooler guard as standard equipment.
●Applicable Vehicle Specifications
Exclusively for vehicles equipped with a SP Takegawa special clutch (cast-type clutch cover or die-cast clutch cover).
●Oil Outlet Method
By removing the oil filter cover on the special clutch cover and installing the separately sold oil cooler unit, oil can be drawn to the oil cooler.

■Compatible Models
HONDA
MAGNA50 (AC13-1000010~)
*For vehicles equipped with an SP Takegawa special clutch kit

■Specifications
Type: 3-Fin/Rubber Hose
Compatible Clutch Covers: Sand-cast clutch cover, die-cast clutch cover

■Notes
*Images are for illustration purposes only. Includes products of different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
*This kit cannot be installed unless an SP Takegawa special clutch kit is installed. Compatible with die-cast clutch covers.
*This kit does not include an oil cooler unit (oil outlet). It must be purchased separately.
*The old type oil cooler units (09-07-056/057) are only compatible with cast-type clutch covers.
*When used with a die-cast clutch cover, simultaneous installation of a thermostat unit and oil hole plug is not possible.
*When adding oil, add 40cc to the specified oil quantity.
*This product is made to order, so cancellations after ordering are not possible.
*This product is made to order, so it will take some time for delivery. Also, the manufacturer may discontinue the product or change specifications without prior notice. Please be aware.
