Compact Cooler AW Kit 3-Fin/4-Oil Line Dax50

【SP武川 07-07-0290 Compact Cool AW Kit 3-Fin/4-Oil Line Dax50 Oil Cooler Cooling Engine Parts Takegawa】
■Product Description
Ideal for cooling engine oil during hot seasons or in bored-up engines.
The oil cooler body is a compact Cool AW, which fits 4MINI bikes perfectly.
An oil cooler plate and oil cooler guard are standard equipment.

■Detailed Description
Oil is extracted from the oil outlet on the aluminum die-cast clutch cover.
The oil cooler stay is installed using the included cylinder head cover.
This is a compact oil cooler, and an oil cooler plate and oil cooler guard are standard equipment.
The main unit is a 3-fin, 4-oil line type.

■Compatible Models
HONDA
Dax50 (AB26-1000001～)
*For vehicles equipped with SP Takegawa's aluminum die-cast clutch cover.

■Specifications
Type: 3-Fin/4-Oil Line
For: Vehicles equipped with SP Takegawa's aluminum die-cast clutch cover only

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware of this.

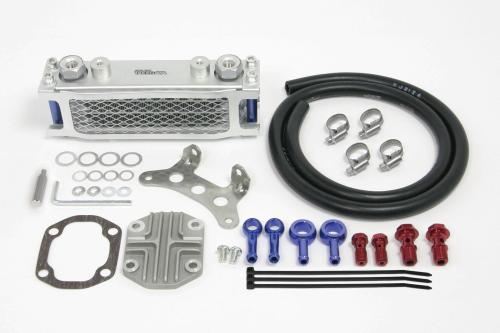

*The image shows a 4-fin, 5-oil line type.
*This kit cannot be installed unless an aluminum die-cast clutch cover is installed.
*Cannot be installed on special clutch covers (cast aluminum).
*Cannot be installed with a standard cylinder head cover.
*When adding oil, add 40cc to the specified oil amount.
*The die-cast clutch cover oil cooler kit includes an oil hole plug, so when installing the oil cooler, be sure to install the oil hole plug or a thermo unit. Oil will not circulate if nothing is installed.
*Since this product is made-to-order, cancellations after ordering are not possible.
*Due to made-to-order production, delivery may take some time. Also, please note that the manufacturer may discontinue the product or change specifications without prior notice. Thank you for your understanding.
