Compact Cool Kit (for SH4V+R/SP Clutch Cover)

【Takegawa 07-07-0312 Compact Cool Kit (for SH4V+R/SP Clutch Cover) Z125 PRO KSR110 KSR PRO Motorcycle Oil Cooler Kit TAKEGAWA】
■Product Description
This oil cooler kit is designed to be installed under the cylinder head of the Z125 PRO, KSR110, and KSR PRO.
This oil cooler kit is designed to attach the oil cooler body to the SP Takegawa Super Head 4V+R cylinder head.

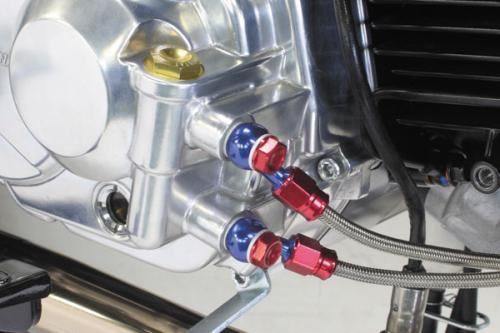

By using the oil outlet on the special clutch cover, oil is extracted and connected to the oil cooler via a slim line hose.
The cooler body uses a compact cool (3 fins, 4 oil lines) with excellent cooling efficiency.
Installing this product is effective in suppressing the rise in oil temperature associated with engine bore-up.

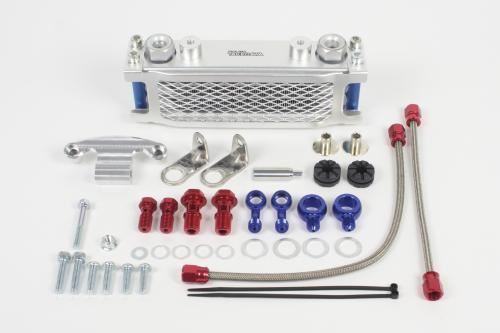

Oil cooler plate and guard are standard equipment.

【Optional Parts】
Optional parts include a dry carbon color pipe kit (07-07-0011), which allows you to dress up your bike by replacing the standard aluminum color pipe.

■Compatible Models
Z125 PRO (BR125H-A02621〜)
KSR110 (KL110A-000001〜)
KSR110 (KL110CBF) (JKAKL110CCDA00058〜)
KSR110 (KL110DDF) (KL110D-A57002〜)
KSR PRO (KL110 EEF) (JKAKL110EEDA88121〜)

■Notes
*Please add approximately 40cc to the standard specified oil quantity.
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please understand.
