Compact Cool Kit 4-Fin/Slimline Grom MSX125 Monkey 125

【SP Takegawa 07-07-0318 Compact Cool Kit 4 Fin/Slim Line GROM MSX125 Monkey 125 Oil Cooler Cooling Engine Parts Takegawa】
■Product Description
This oil cooler kit is designed for vehicles equipped with SP Takegawa Super Head 4V+R bore up kits, or vehicles equipped with both SP Takegawa Super Head 4V+R bore up kits and SP Takegawa Special Clutch Covers.
It suppresses the rise in oil temperature caused by the increased displacement of the engine.
The cooler body of this product is a 4-fin, 5-oil line type.

■Detailed Description
It suppresses the rise in oil temperature caused by the increased displacement of the engine.
The cooler body uses a compact cool design with excellent cooling performance.
The compact cool body comes standard with an oil cooler plate and guard.

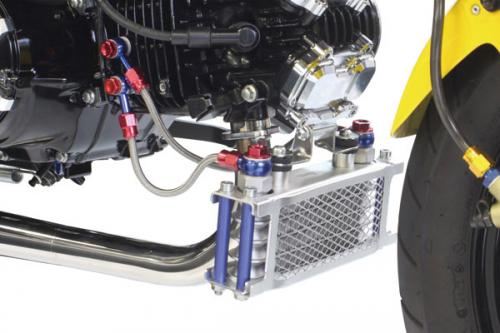

The oil cooler body is mounted by attaching an oil cooler bracket to the tappet cap cover area under the cylinder head, and then securing the oil cooler body.
Oil is extracted from the oil outlet boss on the bore-up cylinder of the SP Takegawa Super Head 4V+R kit, or from the oil outlet on the SP Takegawa Special Clutch Cover.
Rubber mounts with excellent vibration damping are used for the mounting points between the oil cooler body and the oil cooler stay.
The included aluminum oil cooler stay is chrome-plated.
It can be used in conjunction with SP Takegawa low-down top bolts.

■Compatible Models
HONDA
GROM (JC61-1000001~/JC61-1300001~)
GROM (JC75-1000001~)
MSX125 (MLHJC618_D5000001~)
MSX125SF
Monkey 125 (JB02-1000001~)

■Specifications
Type: 4 Fin/Slim Line
Target: Vehicles equipped with SP Takegawa Super Head 4V+R bore up kit, or vehicles equipped with both SP Takegawa Super Head 4V+R bore up kit and SP Takegawa Special Clutch Cover.

■Notes

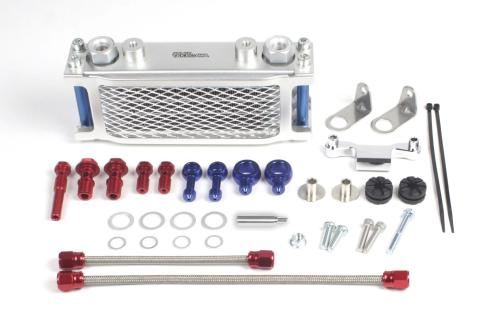

*The image is for illustration purposes only. It includes products of different sizes and colors.
*Product designs and specifications are subject to change without notice. Please be aware.
*This oil cooler kit is intended for vehicles equipped with SP Takegawa Super Head 4V+R bore up kits, or vehicles equipped with both SP Takegawa Super Head 4V+R bore up kits and SP Takegawa Special Clutch Covers.
*For oil volume, please add approximately 60cc for 4 fins to the standard specified oil volume.
*Cannot be installed on stock cylinder heads.
*This product is made to order, so cancellations after ordering are not possible.
*As this is a made-to-order product, it may take some time for delivery. Also, there may be cases of discontinuation or specification changes without prior notice. Please be aware.
