Compact Cool Kit 3-Fin/Rubber Hose Super Cub 50/70 Little Cub Dax 50

【SP武川 07-07-0340 Compact Cool Kit 3-Fin/Rubber Hose Super Cub 50/70 Little Cub Dax 50 Oil Cooler Cooling Engine Parts Takegawa】
■Product Description

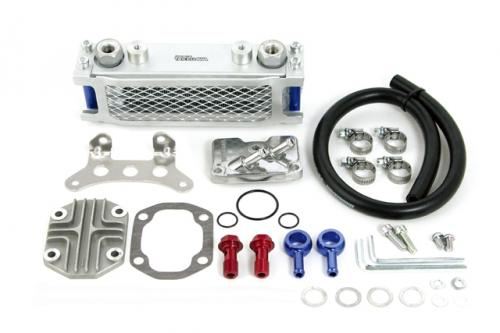

An oil cooler kit that fastens to the cylinder head.

■Detailed Description
●Compact Cool AW (3 fins, 4 oil lines)
This compact oil cooler comes standard with an oil cooler plate and an oil cooler guard.
●Applicable Vehicle Specifications
Vehicles equipped with Normal Head / Regular Head / R-Stage +D / R-Stage Head
●Oil Outlet Method
Attach the included oil cooler unit to the right cylinder head side cover of the Normal / Regular / R-Stage +D / R-Stage head to create an oil outlet.
The oil cooler stay is attached using the included cylinder head cover.
●Installation on Super Cub / Little Cub
Can be installed simultaneously with the leg shield.
Some vehicles may have slight contact, so please add collars to the front cover setting collar.

■Compatible Models
HONDA
Super Cub 50 (C50-0400001~/C50-0600001~/C50-0800001~/C50-2100001~/AA01-1000001~1699999)
*Cannot be installed on fuel-injected models.
Little Cub (C50-4300001~/C50-4400001~/C50-4500001~/AA01-3000001~3999999)
*Cannot be installed on fuel-injected models.
Super Cub 70 (C70-1200001~/C70-1300001~)
CD50 (CD50-1500001~)
CL50 (CD50-400001~)
Benly50S (CD50-2200005~)
12V DAX50 (AB26-1000001~)

■Specifications
Type: 3-fin/rubber hose
Applicable to: Vehicles equipped with Normal Head, Regular Head, R-Stage +D, R-Stage Head

■Notes
*The image is for illustration purposes only. It includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware of this.
*For oil volume, please add approximately 60cc for 4 fins and approximately 40cc for 3 fins to the standard oil volume.
*Please check that it is compatible only with the applicable frame number before purchasing.
*Cannot be installed on fuel-injected models.
*As this product is made to order, cancellations after ordering are not possible.
*Due to being made to order, this product may take some time to deliver. Also, without prior notice, the manufacturer may discontinue the product or change specifications. Thank you for your understanding.
