Compact Cool Kit, 3-Fin/Braided Hose #4, GROM MSX125 Monkey 125

【SP武川 07-07-0351 Compact Cool Kit 3-Fin/Braided Hose #4 GROM MSX125 Monkey 125 Oil Cooler Cooling Engine Parts Takegawa】
■Product Description
This product can suppress the oil temperature rise that accompanies the increase in engine displacement.
The cooler body of this product is a 3-fin, 4-oil line type.
*This product requires a specific engine specification. Please check the engine specifications below before purchasing.
●Applicable cylinder head
Normal cylinder head.
The oil cooler body is installed under the cylinder head using an oil cooler bracket for the normal cylinder head.
●Applicable engine specifications
Vehicles equipped with SP Takegawa special clutch cover.
Since an oil outlet for the oil cooler is required, it is necessary to install an SP Takegawa special clutch cover.
The oil outlet equipped on the cover will be used.

■Detailed Description
This is an oil cooler kit exclusively for vehicles equipped with an SP Takegawa special clutch cover. It can suppress the oil temperature rise that accompanies the increase in engine displacement.
The cooler body adopts the Compact Cool AW, which has excellent cooling efficiency.

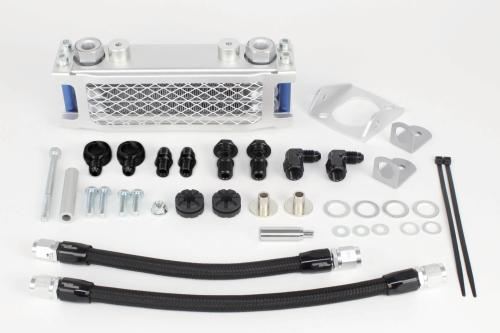

The Compact Cool AW body comes standard with an oil cooler plate and guard.

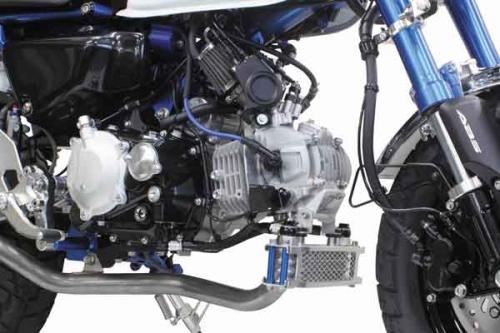

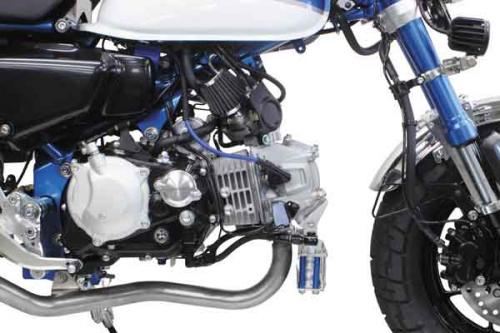

The oil cooler body is installed by attaching a special stay to the tappet cap cover part under the normal cylinder head, and then securing the oil cooler body.
The oil outlet uses the oil outlet boss on the SP Takegawa special clutch cover.
Rubber mounts with excellent vibration damping are used for the fixing part between the oil cooler body and the oil cooler stay.
The included aluminum oil cooler stay and collar are anodized.
It can be used in conjunction with SP Takegawa low-down top bolts.
It can be installed simultaneously with SP Takegawa aluminum machined tappet covers.

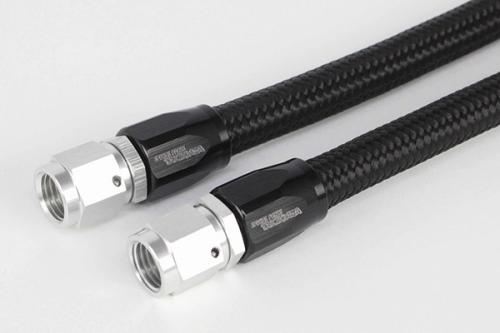

●Braided Hose #4 adopted
This is a nylon braided hose with an outer diameter of φ11mm, ideal for small vehicles.
In addition, since it uses an inner diameter of φ5.6mm, it reduces the burden on the oil pump.
The nylon braided hose is lightweight and flexible, offering excellent freedom of routing.
When installed, the black braided hose tightens up the vehicle.

■Compatible Models
HONDA
GROM (JC61-1000001～/JC61-1300001～)
GROM (JC75-1000001～)
MSX125 (MLHJC6181D5000001～)
MSX125SF
Monkey 125 (JB02-1000001～)

■Specifications
Type: 3-Fin/Braided Hose #4
Applicable cylinder head: Normal cylinder head
Applicable engine specification: Vehicles equipped with SP Takegawa special clutch cover

■Notes
*The image is for illustration purposes only. It includes products with different sizes and colors.
*Product designs and specifications are subject to change without notice. Please be aware.
*For oil volume, please add 40cc for 3-fin and 60cc for 4-fin to the standard specified oil volume.
*If installing simultaneously with the tappet cap for normal heads, a separate collar set will be required.
*For Monkey 125, simultaneous installation of the stock muffler is not possible. Simultaneous installation of various SP Takegawa up-type mufflers is possible.
*This product is made-to-order, so cancellations after ordering are not possible.
*This is a made-to-order product that takes time to deliver. Also, without prior notice, the manufacturer may discontinue or change specifications. Please be aware in advance.
