Compact Cool Kit 3-Fin/Braided Hose #4 GROM MSX125 Monkey 125

【SP武川 07-07-0353 Compact Cool Kit, 3-Fin/Braided Hose #4 for GROM, MSX125, Monkey 125, Oil Cooler, Cooling Engine Parts, Takegawa】
■Product Description
This product can suppress oil temperature rise associated with increased engine displacement.
The cooler body of this product has 3 fins and 4 oil lines.
※This product requires a specific engine specification. Please check the engine specifications below before purchasing.
●Applicable Cylinder Head
SP Takegawa Super Head 4V+R.
The oil cooler body is installed below the Super Head 4V+R head using the oil cooler bracket for the Super Head 4V+R head.
●Applicable Engine Specification
Vehicles equipped with SP Takegawa Special Clutch Cover.
An oil outlet for the oil cooler is required, so the SP Takegawa Special Clutch Cover must be installed.
The oil outlet equipped on the cover is used.

■Detailed Description

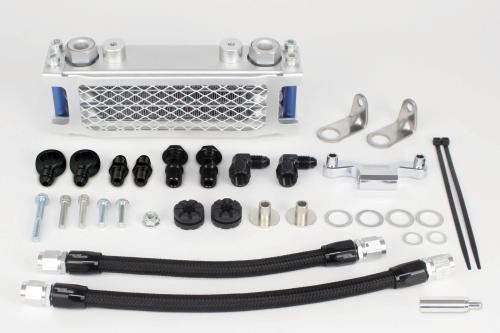

This is an oil cooler kit designed for vehicles simultaneously equipped with SP Takegawa Super Head 4V+R Big Bore Kit and SP Takegawa Special Clutch Cover.
It can suppress oil temperature rise associated with increased engine displacement.
The cooler body adopts the Compact Cool AW, which boasts excellent cooling performance.
The Compact Cool AW body comes standard with an oil cooler plate and guard.

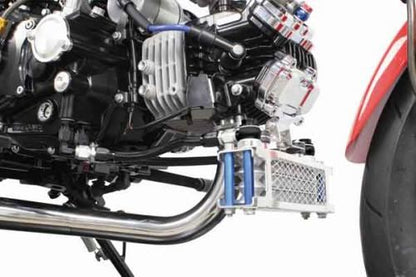

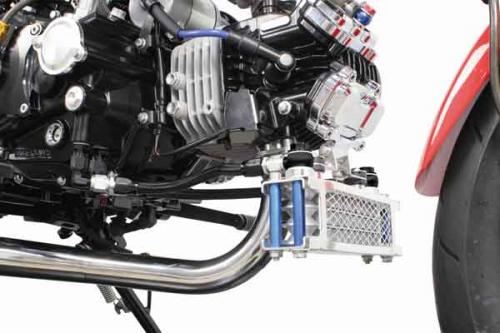

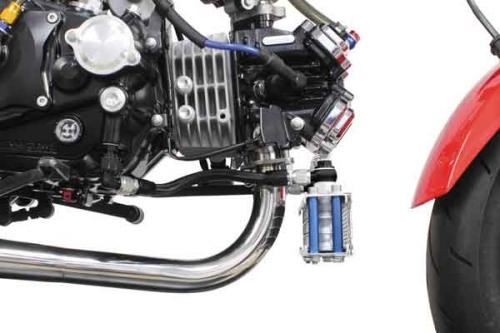

The oil cooler body is mounted by attaching a dedicated stay to the tappet cap cover part of the Super Head 4V+R cylinder head, and then securing the oil cooler body.
The oil outlet uses the oil outlet boss on the SP Takegawa Special Clutch Cover.
The fixing part between the oil cooler body and the oil cooler stay uses a rubber mount with excellent vibration damping.
The included aluminum oil cooler stay and collars are anodized.
It can be used in conjunction with SP Takegawa Low Down Top Bolts.

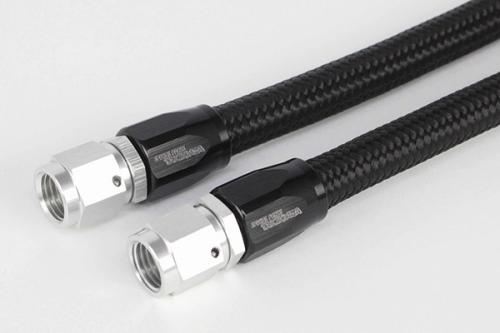

This nylon braided hose has an outer diameter of φ11mm, which is ideal for small vehicles.
Furthermore, with an inner diameter of φ5.6mm, it reduces the burden on the oil pump.
The nylon braided hose is lightweight and flexible, offering excellent freedom in routing.
When installed, the black braided hose enhances the vehicle's appearance.

■Compatible Models
HONDA
GROM (JC61-1000001～/JC61-1300001～)
GROM (JC75-1000001～)
MSX125 (MLHJC6181D5000001～)
MSX125SF
Monkey 125 (JB02-1000001～)

■Specifications
Type: 3-fin/Braided hose #4
Applicable cylinder head: SP Takegawa Super Head 4V+R
Applicable engine specification: Vehicles equipped with SP Takegawa Special Clutch Cover

■Notes
※Images are for illustration purposes only. Includes products of different sizes and colors.
※Product design and specifications may change without prior notice. Please be aware.
※For oil quantity, add 40cc for 3-fin and 60cc for 4-fin to the normal specified oil quantity.
※For Monkey 125, simultaneous installation with the standard muffler is not possible. Simultaneous installation with various SP Takegawa up-mufflers is possible.
※This product is made-to-order, so cancellations after ordering are not possible.
※This is a made-to-order product, so delivery may take some time. Also, please note that the manufacturer may discontinue the product or change specifications without prior notice. Thank you for your understanding.
