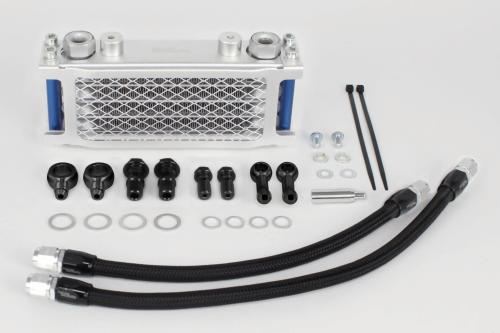

Compact Cool Kit, 4-fin/Braided Hose #4 for GROM/MSX125

【SP武川 07-07-0356 Compact Cool Kit 4 Fin/Braided Hose #4 GROM MSX125 Oil Cooler Cooling Engine Parts Takegawa】
■Product Description
This product is intended for vehicles equipped with SP Takegawa's big throttle body with high-compression piston kit, or various bore-up kits, and with SP Takegawa's air filter kit and special clutch cover kit installed.
The cooler body of this product has 4 fins and 5 oil lines.
*This product requires specific engine specifications. Please confirm the engine specifications below before purchasing.
●Compatible Clutch Cover
SP Takegawa's Special Clutch Cover is compatible.
Oil will be extracted to the oil cooler using the oil outlet on the special clutch cover.
●Compatible Engine Specifications
This product is compatible with vehicles equipped with SP Takegawa's various bore-up kits with oil outlet bosses (big throttle body specification) & air filter kit.
Since the stock air cleaner box needs to be removed, it is necessary to install SP Takegawa's big throttle body.
By removing the stock cleaner box, the shroud fixing part and air filter will be gone, so it is necessary to install SP Takegawa's air filter kit (for big throttle body) which includes a shroud stay.
The oil cooler body is fixed to the shroud stay.
●When installing this product with stock throttle body specifications
This product can be installed by purchasing SP Takegawa's air filter kit for stock throttle body.
In that case, re-setting of the injection controller will be necessary.

■Detailed Description
●Compact Cool

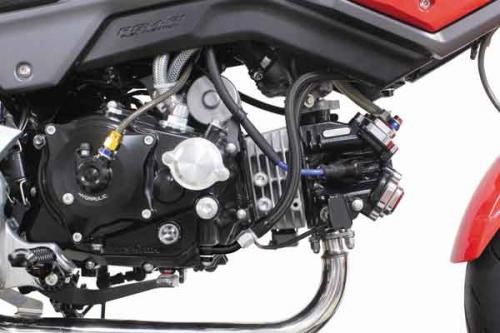

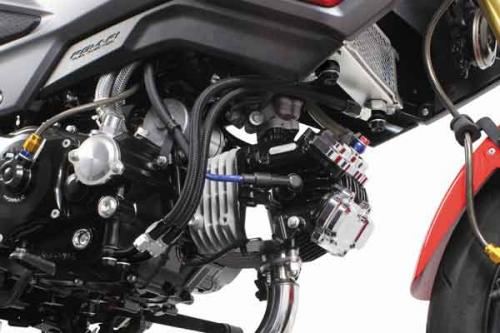

The cooler body fits inside the shroud, preserving the vehicle's appearance. (No modification to the shroud is required for installation.)
The cooler body uses a compact cool design, which offers excellent cooling performance.
By installing an oil cooler, the oil temperature increase accompanying engine bore-up can be suppressed.
Oil cooler plate and guard are standard equipment.

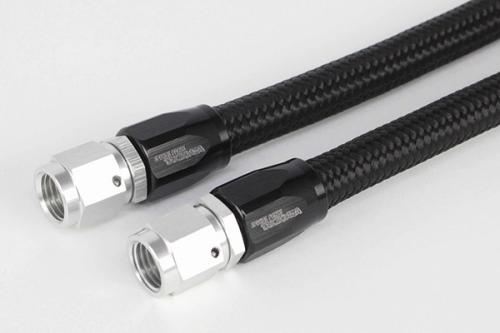

●Braided Hose #4 Adopted
This is a nylon braided hose with an outer diameter of φ11mm, ideal for small vehicles.
Also, with an inner diameter of φ5.6mm, it reduces the burden on the oil pump.
Nylon braided hoses are lightweight and flexible, offering excellent freedom of routing.
When installed, the black braided hose tightens up the vehicle's appearance.

■Compatible Models
HONDA
GROM (JC61-1000001～/JC61-1300001～)
GROM (JC75-1000001～)
MSX125 (MLHJC618_D5000001～)
MSX125SF

■Specifications
Type: 4 Fin/Braided Hose #4
Compatible Clutch Cover: SP Takegawa Special Clutch Cover
Compatible Engine Specifications: SP Takegawa various bore-up kits with oil outlet boss (big throttle body specification) & air filter kit equipped vehicles

■Notes
*Images are for illustration purposes only. They may include products with different sizes or colors.
*Product design and specifications are subject to change without notice. Please be aware of this.
*Please add approximately 60cc to the normal specified oil quantity for the 4-fin oil cooler.
*As this product is made-to-order, cancellations after placing an order are not possible.
*This product is made-to-order, so delivery may take some time. Also, please note that the manufacturer may discontinue the product or change specifications without prior notice. Thank you for your understanding.
