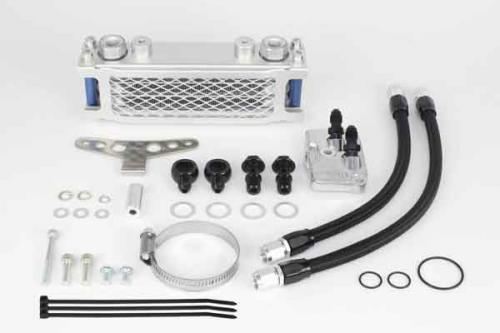

Compact Cool Kit 3-Fin/Braided Hose #4 Monkey, Monkey Baja, Gorilla

【SP武川 07-07-0369 Compact Cool Kit 3-Fin/Braided Hose #4 Monkey Monkey Baja Gorilla Oil Cooler Cooling Engine Parts Takegawa】
■Product Description
Oil cooler kit with #4 braided hose (outer diameter φ11mm), ideal for small vehicles.

■Detailed Description

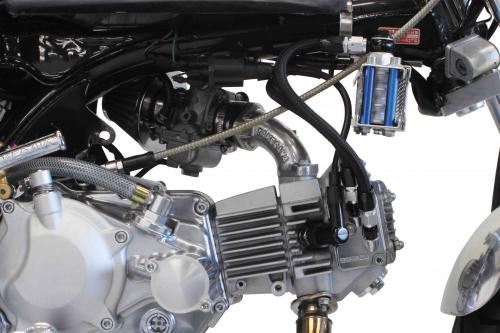

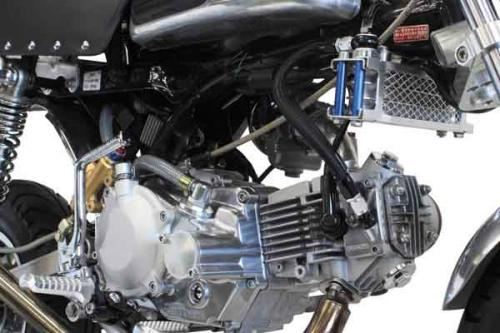

The oil cooler unit is secured under the frame using an oil cooler stay and clamp band.

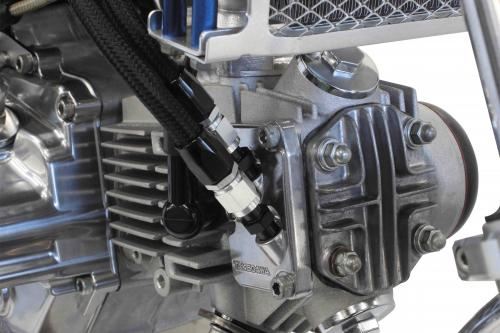

The oil outlet is changed from the R. side cover of the target cylinder head to an oil cooler unit, and oil is extracted from the cylinder head.

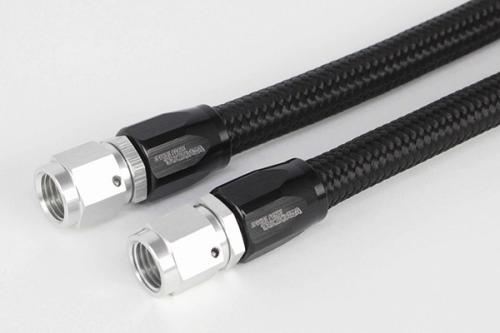

●Braided Hose #4
This is a nylon braided hose with an outer diameter of φ11mm, ideal for small vehicles.
In addition, with an inner diameter of φ5.6mm, it reduces the burden on the oil pump.
Nylon braided hoses are lightweight and flexible, offering excellent freedom of routing.
When installed, the black braided hose enhances the vehicle's appearance.
●Compact Cool Unit
The cooler unit uses a compact cool design, which offers excellent cooling performance.
Installing an oil cooler can suppress the rise in oil temperature caused by engine bore-up.
An oil cooler plate and guard are standard equipment.

■Compatible Models
HONDA
Monkey/Gorilla 6V (2.6ps・3.1ps)
12V (3.1ps) (Z50J-1300017～/AB27-1000001～1899999)
Monkey BAJA

■Specifications
Type: 3-Fin/Braided Hose #4
Number of Stages and Oil Lines: 3-fin 4-oil lines
Target Cylinder Head: Normal head, Regular head, R-Stage/R-Stage EM/R-Stage+D, 17R-Stage E /17R-Stage+D

■Notes
※Images are for illustration purposes only. May include products with different sizes or colors.
※Product design and specifications may change without prior notice. Please understand.
※Cannot be installed simultaneously with a tappet cap breather pipe.
※Cannot be installed on Monkey (injection models).
※Installation requires bending or cutting the harness ring welded to the frame.
※For oil quantity, add approx. 40cc for the 3-fin to the normal specified oil quantity.
※As this product is made to order, cancellations after ordering are not possible.
※Due to being made to order, delivery may take some time. Also, without prior notice, the manufacturer may discontinue the product or change specifications. Please be aware.
