Compact Cool Kit 3-Fin/Blade Hose #4 Monkey, Monkey Baja, Gorilla

【SP Takegawa 07-07-0370 Compact Cool Kit 3 Fin/Braided Hose #4 Monkey Monkey Baja Gorilla Oil Cooler Cooling Engine Parts Takegawa】
■Product Description
An oil cooler kit using #4 braided hoses with an outer diameter of φ11mm, ideal for small vehicles.

■Detailed Description

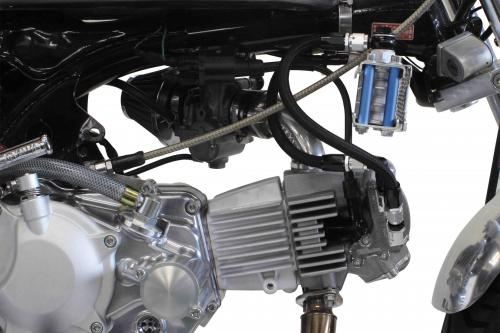

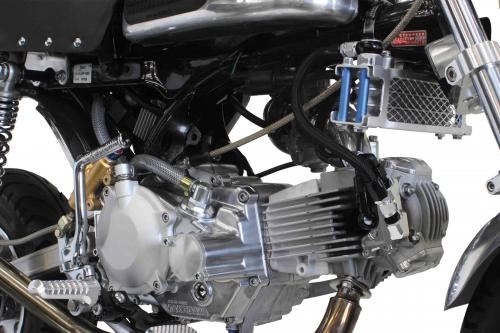

The oil cooler body is secured under the frame using an oil cooler stay and clamp band.

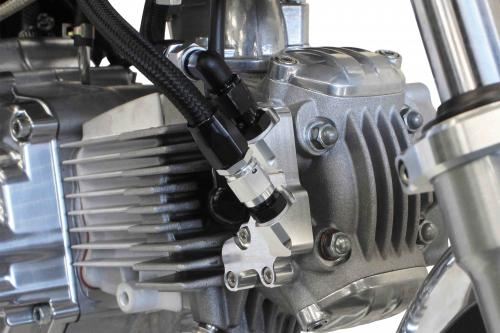

The oil outlet uses the R. side cover of the Super Head 4V+R head, modified into an oil cooler unit, to extract oil from the cylinder head.

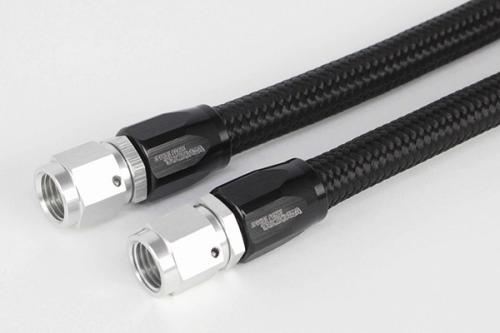

●Braided Hose #4
This is a nylon braided hose with an outer diameter of φ11mm, ideal for small vehicles.
In addition, since it uses an inner diameter of φ5.6mm, it reduces the burden on the oil pump.
Nylon braided hoses are lightweight and flexible, offering excellent freedom of routing.
When installed, the black braided hose enhances the vehicle's appearance.
●Compact Cool Body
The cooler body uses a compact cool design with excellent cooling performance.
By installing an oil cooler, you can suppress the rise in oil temperature accompanying an engine bore-up.

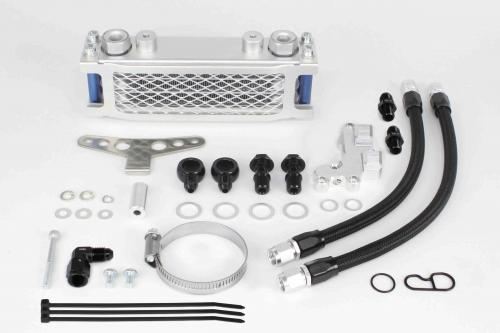

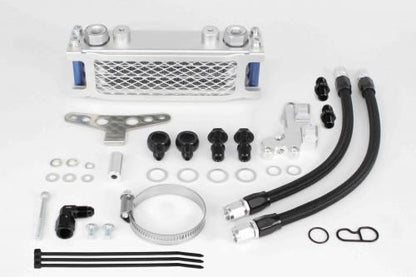

An oil cooler plate and guard are standard equipment.

■Compatible Models
HONDA
12V Monkey Gorilla (Z50J-2000001～/AB27-1000001～1899999)
Monkey Baja (Z50J-1700001～)
*Vehicles equipped with Super Head 4V+R

■Specifications
Type: 3 fin/Braided Hose #4
Target: Vehicles equipped with Super Head 4V+R

■Precautions
*The image is for illustration purposes only. It includes products with different sizes and colors.
*Product designs and specifications are subject to change without notice. Please be aware.
*When installing the oil cooler body under the frame, only the 3-fin oil cooler body can be installed simultaneously with the included tappet breather.
*Installation requires bending or cutting the harness ring welded to the frame.
*If using normal front forks, simultaneous installation with SP Takegawa steering damper kit is not possible.
*For oil volume, please add approximately 40cc for 3 fins to the standard specified oil volume.
*This product is made-to-order, so cancellations after ordering are not possible.
*Since this is a made-to-order product, it may take some days for delivery. Also, please note that the manufacturer may discontinue the product or change specifications without prior notice. Thank you for your understanding.
