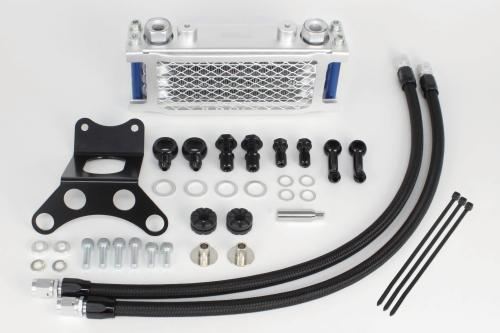

Compact Cool Kit 4 Fin / Braided Hose #4 Monkey Gorilla

【SP武川 07-07-0379 Compact Cool Kit 4-Fin/Blade Hose #4 Monkey Gorilla Oil Cooler Cooling Engine Parts Takegawa】
■Product Description
Oil cooler kit using #4 blade hose with an outer diameter of φ11mm, ideal for small vehicles.

■Detailed Description

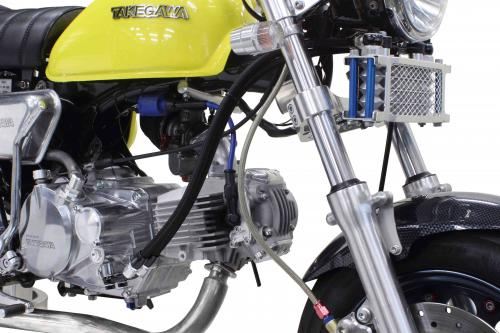

The oil cooler body is attached to the oil cooler stay on the steering stem included with SP Takegawa's φ27 or φ30 front fork kit and fixed under the headlight.

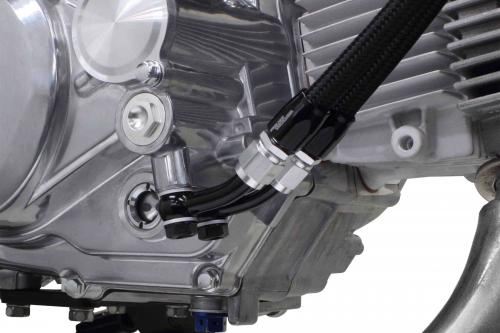

Oil is taken out from the oil outlet on SP Takegawa's Special Clutch Cover (die-cast) by attaching a banjo and banjo bolt.

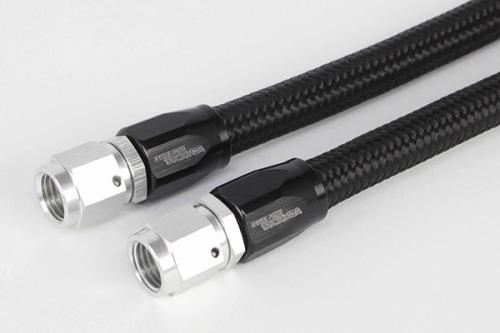

●Blade Hose #4
This is a nylon blade hose with an outer diameter of φ11mm, ideal for small vehicles.
In addition, since it uses an inner diameter of φ5.6mm, it reduces the burden on the oil pump.
Nylon blade hoses are lightweight and flexible, offering excellent freedom of installation.
When installed, the black blade hose tightens up the vehicle's appearance.
●Compact Cool Body
The cooler body uses a compact cool design with excellent cooling efficiency.
By installing an oil cooler, you can suppress the rise in oil temperature caused by engine boring up.
Oil cooler plate and guard are standard equipment.
The compact cool body is available in 3-fin 4-oil line and 4-fin 5-oil line options.

■Compatible Models
HONDA
6V/12V Monkey Gorilla (Z50J-1300017～1510400/Z50J-1600008～/AB27-1000001～1899999)
Monkey (FI) (AB27-1900001～)
*Vehicles equipped with Special Clutch (die-cast)

■Specifications
Type: 4-Fin/Blade Hose #4
Target: Vehicles equipped with Special Clutch (die-cast)

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
*Exclusively for vehicles equipped with SP Takegawa's φ27 front fork kit or φ30 front fork kit. The oil cooler stay is attached to the steering stem included in the kit.
*Cannot be installed on SP Takegawa's upside-down front fork kit.
*Applicable to vehicles equipped with SP Takegawa's Special Clutch (die-cast). Can also be installed on the Special Clutch (die-cast) used in SP Takegawa's complete engines (primary type).
*When using with SP Takegawa's Special Clutch (die-cast), be sure to install an oil hole plug or thermostat unit. Oil will not circulate if nothing is installed.
*Cannot be used simultaneously with normal mufflers or up-mufflers.
*Cannot be installed on SP Takegawa's Special Clutch (sand-cast/TYPE-R (WET/DRY)), dry clutches (all types), or Special Clutches without filters.
*For oil quantity, add approximately 40cc for 3-fin and approximately 60cc for 4-fin to the normal specified oil quantity.
*This product is made to order, so cancellations after ordering are not possible.
*This product is made to order, so it may take some time for delivery. Also, please note that the manufacturer may discontinue the product or change specifications without prior notice. Thank you for your understanding.
