Compact Cool Kit 3-Fin/Blade Hose #4 Monkey, Monkey Baja, Gorilla

【SP武川 07-07-0382 Compact Cool Kit 3-Fin/Blade Hose #4 Monkey Monkey Baja Gorilla Oil Cooler Cooling Engine Parts Takegawa】
■Product Description
Oil cooler kit featuring a #4 blade hose with an outer diameter of φ11mm, ideal for small vehicles.

■Detailed Description

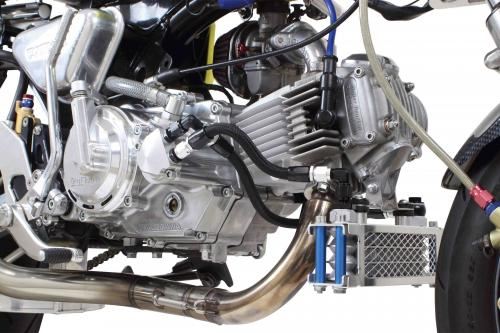

The oil cooler body is attached by mounting a bracket to the inspection cover of SP Takegawa's Super Head +R cylinder head, then installing the oil cooler.

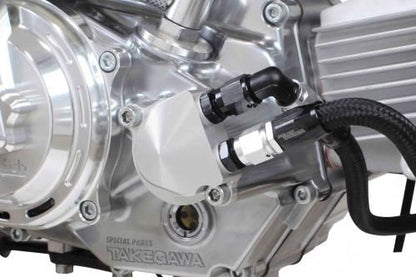

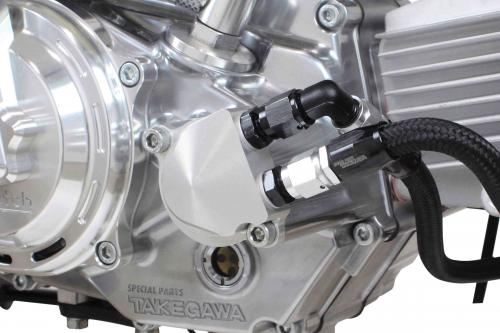

Oil is taken out by installing the included oil cooler unit onto the oil filter cover of SP Takegawa's Special Clutch Cover (with various filters) or Dry Clutch (Type 2).

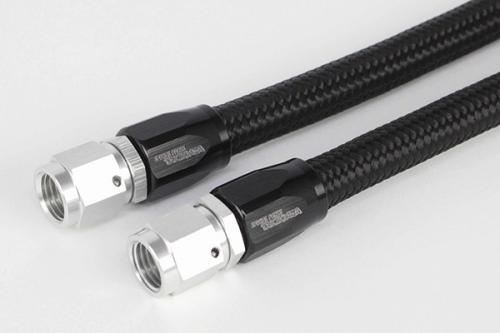

●Blade Hose #4
This nylon blade hose has an outer diameter of φ11mm, making it ideal for small vehicles.
Additionally, its inner diameter of φ5.6mm reduces the burden on the oil pump.
Nylon blade hoses are lightweight and flexible, offering excellent routing freedom.
When installed, the black blade hose enhances the vehicle's appearance.
●Compact Cool Body
The cooler body utilizes a compact cool design with excellent cooling performance.
By installing an oil cooler, the rise in oil temperature associated with engine boring up can be suppressed.

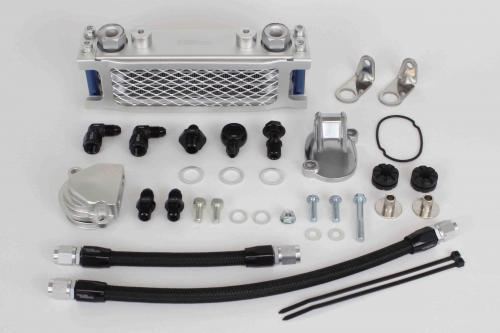

An oil cooler plate and guard are standard equipment.
The compact cool body is available in 3-fin 4-oil line and 4-fin 5-oil line options.

■Compatible Models
HONDA
12V Monkey/Gorilla (Z50J-2000001~/AB27-1000001~1899999)
Monkey BAJA (Z50J-1700001~)
For vehicles equipped with SP Takegawa Super Head +R
SP Takegawa Special Clutch (Sand Casted / Die-Cast / TYPE-R WET/DRY)
SP Takegawa Dry Clutch (Type 2 ver.1/ver.2)
Vehicles equipped with any of the above clutches

■Specifications
Type: 3-Fin/Blade Hose #4
Target: For vehicles equipped with SP Takegawa Super Head +R

■Notes
※Images are for illustration purposes only. Includes products of different sizes and colors.
※Product design and specifications are subject to change without notice. Please be aware.
※Exclusively for vehicles equipped with SP Takegawa Super Head +R.
※Applicable to vehicles equipped with SP Takegawa Special Clutch (Sand Casted / Die-Cast / TYPE-R WET/DRY) or Dry Clutch (Type 2 ver.1/ver.2). Can also be installed on the Special Clutch (Die-Cast) used in SP Takegawa Complete Engines (Primary Type).
※When using SP Takegawa Special Clutch (Die-Cast) equipped vehicles, simultaneous installation of an oil hole plug or thermostat unit is not possible. Simultaneous installation will lead to serious engine trouble.
※Cannot be installed on 148cc and 158cc complete engines.
※Normal mufflers and up-mufflers cannot be installed simultaneously.
※For oil quantity, please add approximately 40cc for the 3-fin cooler to the standard specified oil quantity.
※This product is made-to-order, so cancellations after ordering are not possible.
※Due to made-to-order production, delivery of this product will take time. Also, please note that the manufacturer may discontinue the product or change specifications without prior notice. Thank you for your understanding.
