Compact Cool Kit 4-Fin/Braided Hose #4 CD50 CL50 Benly 50S Dax 50

[SP Takegawa 07-07-0385 Compact Cool Kit 4 Fin/Blade Hose #4 CD50 CL50 Benly50S Dax50 Oil Cooler Cooling Engine Parts Takegawa]
■Product Description
Oil cooler kit using blade hose #4 with an outer diameter of φ11mm, optimal for small vehicles.

■Detailed Description

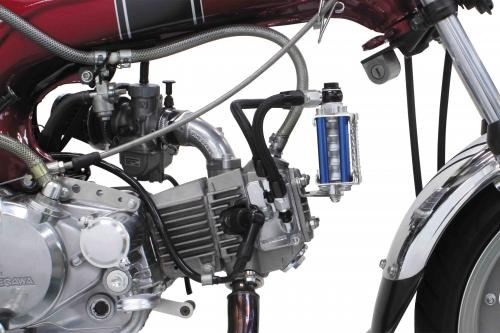

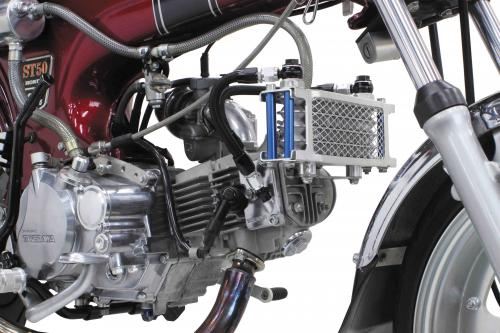

The oil cooler body is attached to the upper part of the cylinder head by installing the included cylinder head cover and oil cooler stay.

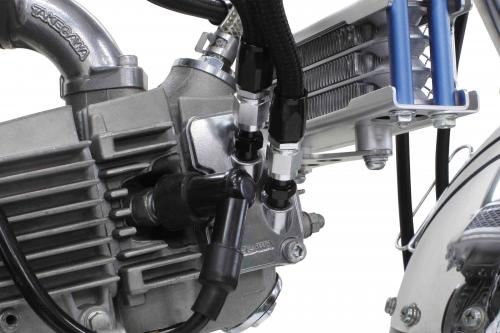

The included oil cooler unit is installed on the right cylinder head side cover of the target cylinder head (Normal, Regular, R-Stage, R-Stage/EM/+D, 17R-Stage/E/+D) to provide an oil outlet.

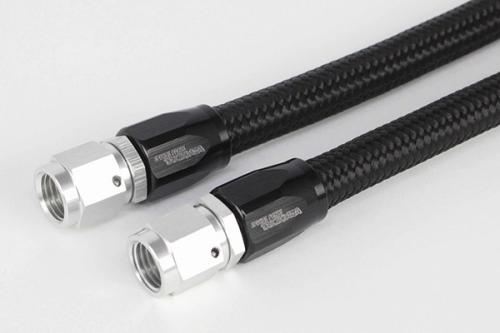

●Blade Hose #4
This is a nylon blade hose with an outer diameter of φ11mm, ideal for small vehicles.
In addition, since it uses an inner diameter of φ5.6mm, it reduces the burden on the oil pump.
Nylon blade hoses are lightweight and flexible, offering excellent freedom in routing.
When installed, the black blade hose tightens up the vehicle's appearance.
●Compact Cool Body
The cooler body uses a compact cool system with excellent cooling efficiency.
By installing an oil cooler, it is possible to suppress the rise in oil temperature associated with engine bore-up.

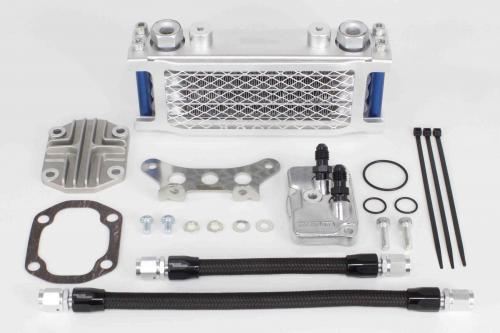

Oil cooler plate and guard are standard equipment.

■Compatible Models
HONDA
CD50 (CD50-1500001～)
CL50 (CD50-4000001～)
Benly50S (CD50-2200005～)
DAX50 (AB26-1000001～)

■Specifications
Type: 4 Fin/Blade Hose #4
Applicable Cylinder Head: Normal Head, Regular Head, R-Stage/R-Stage EM/R-Stage+D, 17R-Stage E /17R-Stage+D

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware of this.
*Cannot be used in conjunction with cylinder head covers with breather pipes (07-06-0012/07-06-0013) or breather pipe kits for tappet caps (07-06-0003).
*Cannot be used with Super Cub 50/70 or Little Cub. (Not applicable due to interference with leg shield)
*Cannot be used in conjunction with 124cc bore-up kits.
*For oil quantity, please add approximately 40cc for 3 fins and approximately 60cc for 4 fins to the standard specified oil quantity.
*This product is made to order, so cancellations after ordering are not possible.
*This product takes time to deliver due to being made to order. Also, please note that the manufacturer may discontinue the product or change specifications without prior notice. Thank you for your understanding.
