Compact Cool Kit, 4-fin/braided hose #4, Monkey Gorilla

【SP武川 07-07-0387 Compact Cool Kit 4 Fin/Braided Hose #4 Monkey Gorilla Oil Cooler Cooling Engine Parts Takegawa】
■Product Description
Oil cooler kit using braided hose #4 with an outer diameter of φ11mm, ideal for small vehicles.

■Detailed Description

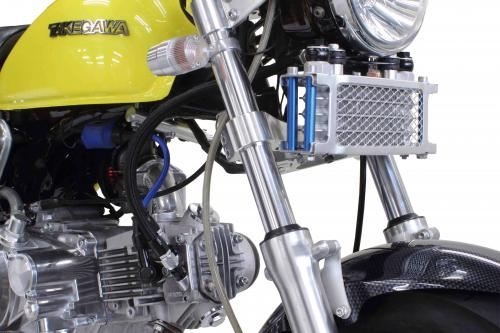

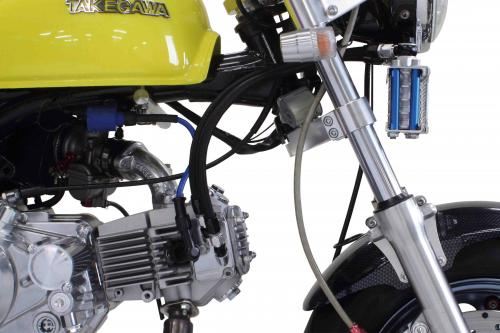

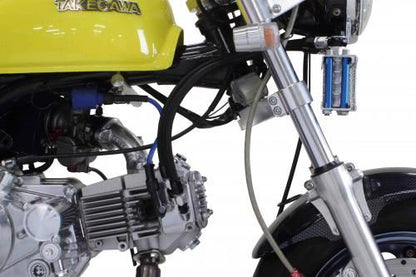

The oil cooler body is attached to the steering stem included with SP Takegawa's φ27 or φ30 front fork kit, and secured under the headlight.

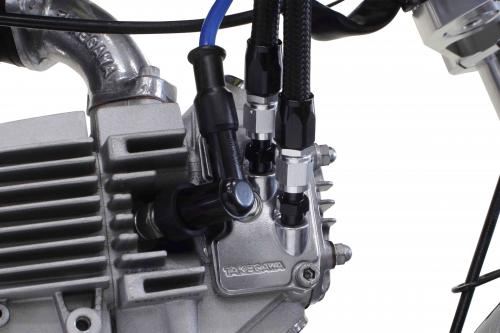

An oil cooler unit, included with the kit, is installed on the right cylinder head side cover of the compatible cylinder head (Normal, Regular, R Stage, R Stage/EM/+D, 17R Stage/E/+D) to provide an oil outlet.

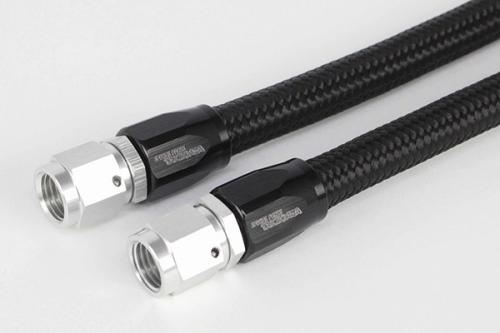

●Braided Hose #4
This nylon braided hose has an outer diameter of φ11mm, ideal for small vehicles.
Also, with an inner diameter of φ5.6mm, it reduces the burden on the oil pump.
Nylon braided hoses are lightweight and flexible, offering excellent freedom in routing.
When installed, the black braided hose gives the vehicle a sleek look.
●Compact Cool Body
The cooler body uses a compact cool design with excellent cooling performance.
Installing an oil cooler can suppress the rise in oil temperature associated with engine bore-up.

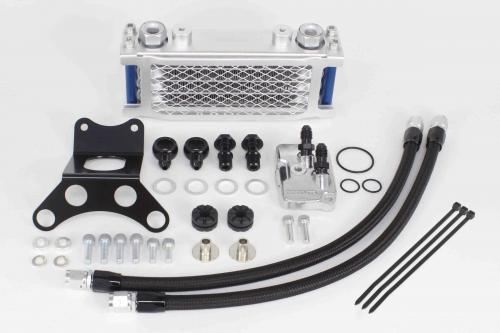

Oil cooler plate and guard are standard equipment.
The compact cool body is available in 3 fins/4 oil lines and 4 fins/5 oil lines.

■Compatible Models
HONDA
Monkey Gorilla 6V/12V (Normal Head)
(Z50J-1300017～1510400/Z50J-1600008～/AB27-1000001～1899999)
Monkey Gorilla (Regular Head, R Stage/EM/+D, 17R Stage E/+D equipped vehicles)
(Z50J-1300017～/AB27-1000001～1899999)

■Specifications
Type: 4 Fin/Braided Hose #4
Compatible Cylinder Heads: Normal, Regular, R Stage, R Stage/EM/+D, 17R Stage/E/+D

■Precautions
※The image is for illustration purposes only. It includes products with different sizes and colors.
※Product design and specifications are subject to change without notice. Please be aware.
※Exclusively for vehicles equipped with SP Takegawa φ27 front fork kit or φ30 front fork kit. The oil cooler stay is attached to the steering stem included with the kit.
※Cannot be installed on SP Takegawa inverted front fork kits.
※Cannot be installed on Monkey (FI).
※Add approximately 40cc for 3 fins or approximately 60cc for 4 fins to the standard oil volume.
※This product is made to order, so cancellations after ordering are not possible.
※Since this product is made to order, it may take some time for delivery. Also, there may be cases of manufacturer discontinuation or specification changes without prior notice. Please be aware of this beforehand.
