Compact Cool Kit 3-Fin/Braided Hose #4 Dax50

【SP武川 07-07-0412 Compact Cool Kit 3-Fin/Blade Hose #4 Dax 50 Oil Cooler Cooling Engine Parts Takegawa】
■Product Description
Oil cooler kit featuring a #4 blade hose with an outer diameter of φ11mm, ideal for small vehicles.

■Detailed Description

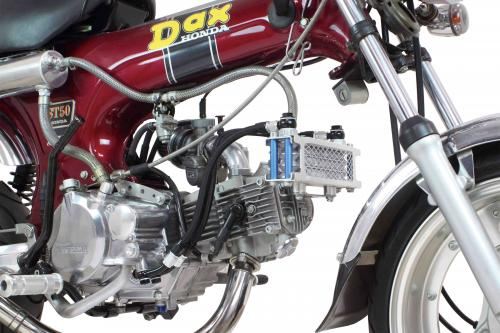

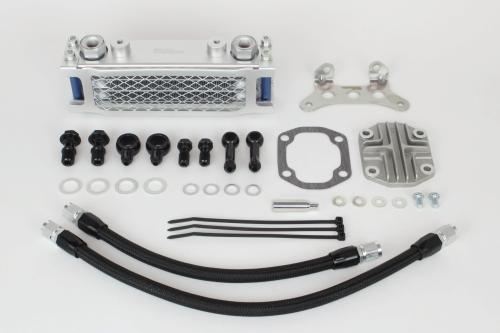

The oil cooler unit is mounted on the cylinder head using the included cylinder head cover and oil cooler stay.

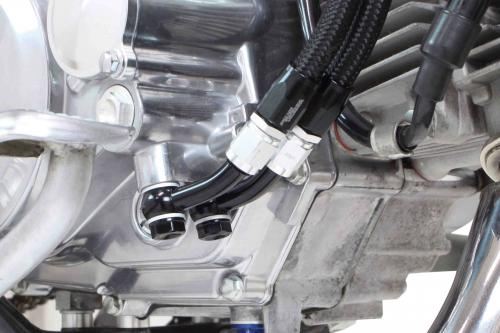

Oil is taken out from the oil outlet on SP Takegawa's special clutch cover (die-cast) by installing a banjo and banjo bolt.

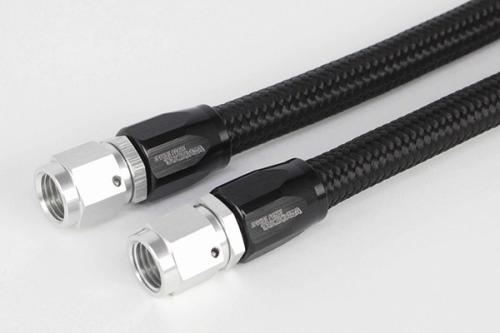

●Blade Hose #4
This nylon blade hose has an outer diameter of φ11mm, which is optimal for small vehicles.
In addition, with an inner diameter of φ5.6mm, it reduces the burden on the oil pump.
Nylon blade hoses are lightweight and flexible, offering excellent freedom in routing.
When installed, the black blade hose enhances the vehicle's appearance.
●Compact Cool Unit
The cooler unit uses a compact cool design, which offers excellent cooling performance.
Installing an oil cooler can suppress the rise in oil temperature associated with engine bore-up.
Oil cooler plate and guard are standard equipment.
The compact cool unit is available in 3-fin 4-oil line and 4-fin 5-oil line options.

■Compatible Models
HONDA
12V DAX50 (AB26-1000001～)
*Vehicles equipped with a special clutch (die-cast)

■Specifications
Type: 3-Fin / Blade Hose #4
Applicable cylinder heads: Normal head, Regular head, R-Stage/EM/+D, 17R-Stage/E/+D

■Notes
*Images are for illustration purposes only. May include products of different sizes or colors.
*Product design and specifications are subject to change without notice. Thank you for your understanding.
*Applicable to vehicles equipped with SP Takegawa's special clutch (die-cast). Can also be installed on special clutches (die-cast) used in SP Takegawa's complete engines (primary type).
*When used with SP Takegawa's special clutch (die-cast), be sure to install an oil hole plug or thermostat unit. Without either, oil will not circulate.
*Cannot be used in conjunction with cylinder head covers with breather pipes (07-06-0012/07-06-0013/09-06-070).
*Cannot be used simultaneously with normal mufflers or up-type mufflers.
*Cannot be installed on SP Takegawa's special clutch (sand-cast/TYPE-R (WET/DRY)), dry clutches (all types), or special clutches without filters.
*For oil quantity, add approximately 40cc for 3-fin or 60cc for 4-fin to the normal specified oil quantity.
*This product is made-to-order, so cancellations after ordering are not possible.
*Due to made-to-order production, delivery may take some time. Also, please note that the manufacturer may discontinue or change specifications without prior notice. Thank you for your understanding.
