In-Line Thermo Unit Kit for Rubber Hoses, Black, Universal

SP Takegawa 07-07-0440 Inline Thermo Unit Kit for Rubber Hoses, Black, Universal, Thermostat, Oil Cooler, Oil Hose, Takegawa

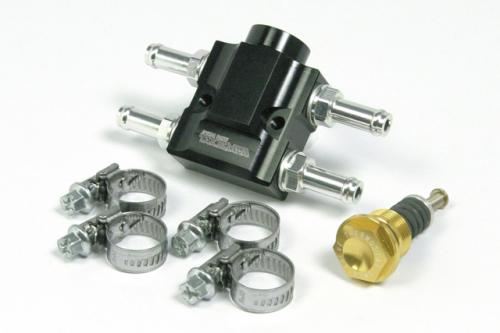

■Product Description

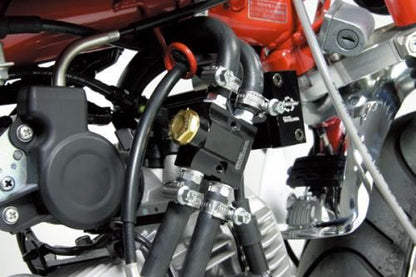

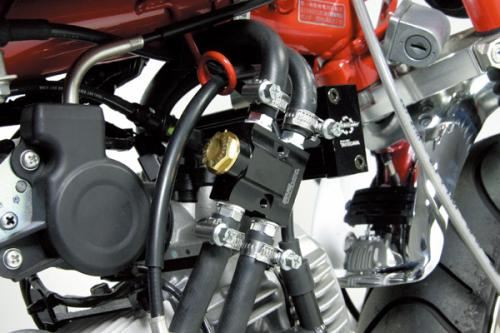

This inline thermo unit can be installed in the middle of the oil hose connecting the oil cooler body and the oil outlet to add a thermostat function.
This prevents overcooling even without installing an SP Takegawa clutch cover with a thermostat function.

■Detailed Description
●Compact Body Shape
Its compact shape enhances versatility and storage, making it suitable for a wide range of motorcycles, from small to large.
The main body has M5 female threads, allowing it to be fixed with custom stays or other means.
It can also be secured with cable ties.
●Thermostat Unit
The basic structure uses a two-way bias type with a shape memory alloy spring.
By using a shape memory alloy spring, it can react extremely quickly to temperature changes.
In the event of an oil cooler blockage and a rise in oil pressure, the bias spring ensures a relief passage.
When the oil temperature is low, the thermostat unit's valve is open, preventing oil from flowing into the oil cooler. Instead, the oil returns to the oil line via the bypass passage.
When the oil temperature reaches approximately 70°C or higher, the valve closes, and oil flows into the oil cooler, preventing overcooling.

■Compatible Models
Universal

■Specifications
Type: For rubber hoses
Color: Black

■Notes
*The image is for illustrative purposes only and may include products with different sizes or colors.
*Product design and specifications are subject to change without notice. Please be aware.
*As this is a universal product, we do not specify the length of the hose that can be used, the combination, or the mounting position for your vehicle. If you use it, please consider the appropriate routing using various hoses provided by the customer.
