Inline Thermo Unit Kit for Rubber Hoses, Silver, Universal

【SP Takegawa 07-07-0443 Inline Thermo Unit Kit for Rubber Hose, Silver, Universal, Thermostat, Oil Cooler, Oil Hose, Takegawa】
■Product Description
By installing this inline thermo unit in the middle of the oil hose connecting the oil cooler body and the oil outlet, a thermostat function can be added.
This prevents overcooling even without installing SP Takegawa's clutch cover with thermostat function.

■Detailed Description
●Compact body shape
The compact shape enhances versatility and storage, making it suitable for many motorcycles, from small to large.
The main body has M5 female threads, allowing it to be fixed with custom brackets.
It can also be secured with zip ties.
●Thermostat unit
The basic structure uses a two-way bias type with a shape memory alloy spring.
By using a shape memory alloy spring, it can react extremely quickly to temperature changes.
Even if the oil cooler becomes clogged and oil pressure increases, the bias spring ensures a relief passage.
When the oil temperature is low, the valve of the thermostat unit opens, preventing oil from flowing to the oil cooler and returning it to the oil line via the bypass passage.
At approximately 70℃ or higher, the valve closes and oil flows to the oil cooler, preventing overcooling.

■Compatible models
Universal

■Specifications
Type: For rubber hose
Color: Silver

■Notes

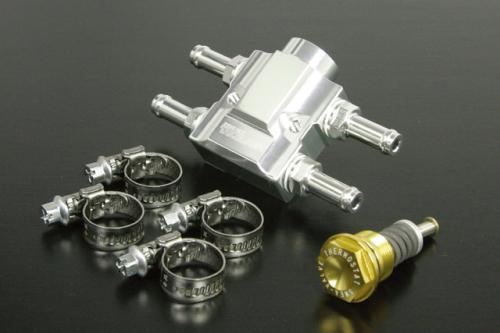

*The image is for illustrative purposes only. It includes products with different sizes and colors.
*Product designs and specifications may change without prior notice. Please be aware.
*As this is a universal product, we do not specify the length, combination, or mounting position of hoses that can be used on a vehicle. If you use this product, please use various hoses and consider appropriate routing yourself.
