Inline Thermo Unit Kit for #6 Hose, Silver, Universal

【SP Takegawa 07-07-0445 Inline Thermo Unit Kit for #6 Hose, Silver, Universal, Thermostat, Oil Cooler, Oil Hose, Takegawa】
■Product Description

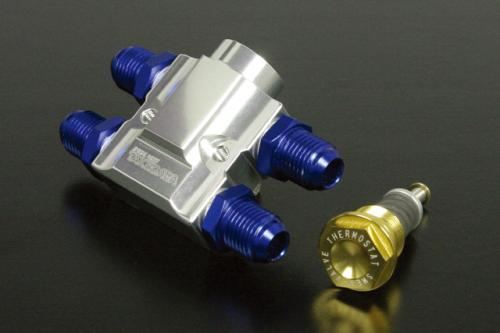

By installing this inline thermo unit in the middle of the oil hose connecting the oil cooler body and the oil outlet, you can add a thermostat function.
This prevents overcooling even without installing SP Takegawa's clutch cover with thermostat function.

■Detailed Description
●Compact body shape
The compact shape enhances versatility and storability, making it suitable for a wide range of motorcycles, from small to large.
The main body has M5 female threads, allowing it to be secured with custom stays or other means.
It can also be secured using zip ties.
●Thermostat Unit
It adopts a two-way bias type with a shape memory alloy spring as its basic structure.
By using a shape memory alloy spring, it can react extremely quickly to temperature changes.
Even if the oil cooler becomes clogged and oil pressure rises, the bias spring ensures a relief passage.
When the oil temperature is low, the thermostat unit's valve opens, and oil does not flow to the oil cooler but returns to the oil line via the bypass passage.
When the temperature reaches approximately 70°C or higher, the valve closes, and oil flows to the oil cooler, preventing overcooling.
●For #6 hose (Earl's mesh hose)

■Compatible models
Universal

■Specifications
Type: For #6 hose
Color: Silver

■Notes
※The image is for illustration purposes only. It includes products with different sizes and colors.
※Product design and specifications are subject to change without prior notice. Please understand.
※Since this is a universal product, we do not specify the usable hose length, combination, or mounting position for specific vehicles. If you use it, please consider the appropriate routing using various hoses at your own discretion.
