Compact Cool Kit, 3-Fin/Braided Hose #4 for CT125 Hunter Cub

【SP Takegawa 07-07-0450 Compact Cool Kit 3-Fin/Blade Hose #4 CT125 Hunter Cub Oil Cooler Cooling Engine Parts Takegawa】
■Product Description
A compact cool kit that suppresses oil temperature rise due to increased ambient temperature and maintains stable engine output.

■Detailed Description

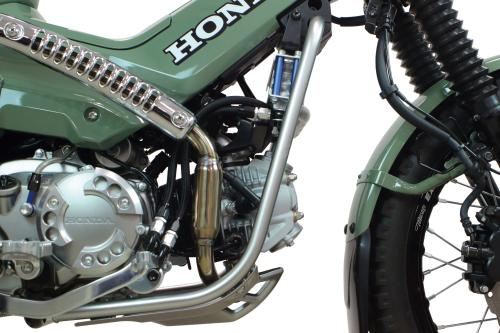

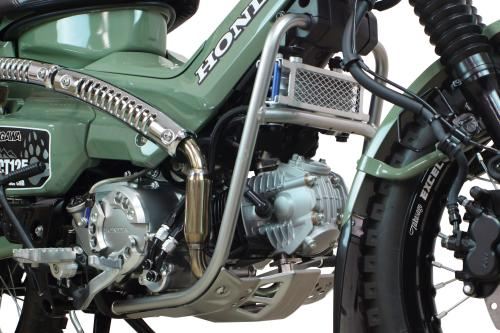

●Oil cooler body mounting position
Attach the included oil cooler stay and fix it under the frame.
●Oil outlet

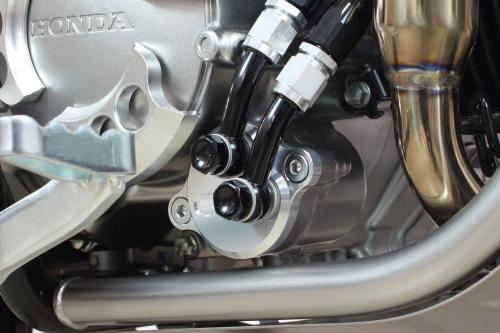

A special oil filter cover is attached to the oil filter part of the genuine clutch cover to extract oil.
The inside of the oil filter cover is equipped with a relief valve mechanism.
Furthermore, it is equipped with a neodymium magnet inside, which adsorbs iron powder mixed in the engine oil, reducing dirt on the oil filter.
●About the compact cool body
The cooler body uses a compact cool, which has excellent cooling effects.
By installing an oil cooler, the oil temperature rise associated with engine bore-up can be suppressed.

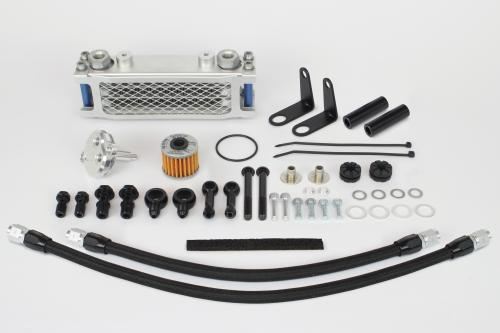

Oil cooler plate and guard are standard equipment.

■Compatible models
HONDA
CT125 (JA65-1000001~)
*For normal clutch cover only

■Specifications
Type: 3-fin/blade hose #4
Target: For normal clutch cover only

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
*For normal clutch cover only.
*Normal mufflers cannot be installed.
*If installing simultaneously with SP Takegawa Leg Bumper & Shield Kit or Subframe Kit, a separate button head screw (00-00-0749) will be required.
*Add approximately 40cc to the normal specified oil volume.
*This product is made to order, so cancellations after ordering are not possible.
*This product takes some time to deliver as it is made to order. Also, please note that the manufacturer may discontinue the product or change specifications without prior notice. Thank you for your understanding.
