Carrier Container Set White 50L

【Takegawa 08-01-0194 Carrier Container Set White 50L CT125 Motorcycle Custom Foldable TAKEGAWA】
■Product Description

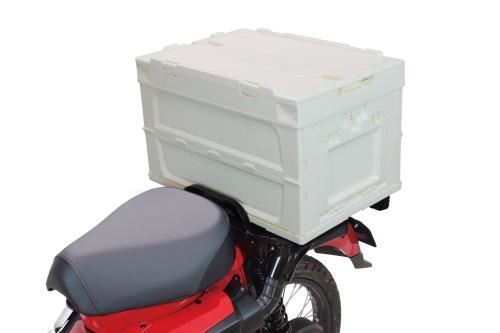

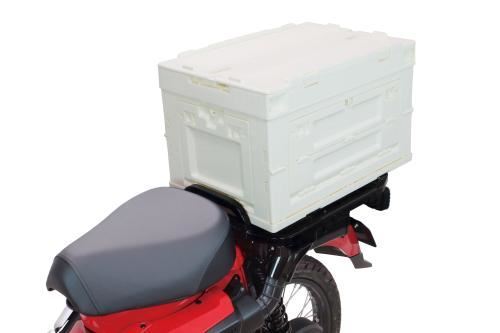

The "Carrier Container Set 50L" allows you to attach a 50L foldable container to the CT125's genuine carrier.

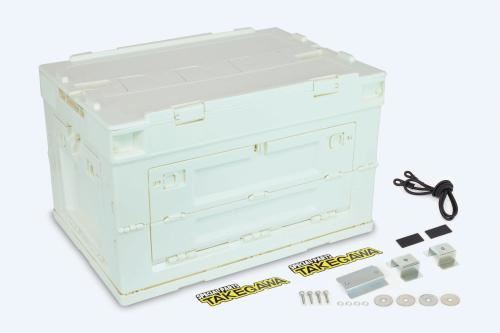

This product is a set that includes mounting stays to secure the container to the CT125's genuine carrier, and a 50L foldable container.
The brackets are designed specifically for the CT125's genuine carrier, so they fit correctly to the carrier shape and can be securely fastened with an OEM-like fit.
Additionally, two different mounting methods can be selected based on the bracket layout. While the front bracket's mounting position is fixed, the rear bracket's position can be adjusted within the mountable range.
The brackets feature a folded design, which increases strength and prevents deformation due to tightening.
The kit includes large-diameter washers to increase the contact area between the container and carrier when tightened, rubber plates to prevent rattling and shifting of the box due to vibration, and rubber cords. The stay body is made of steel.

【Foldable Container 50L】

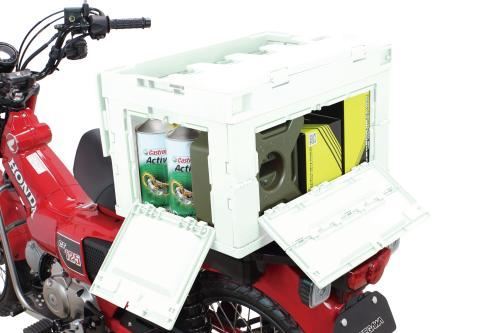

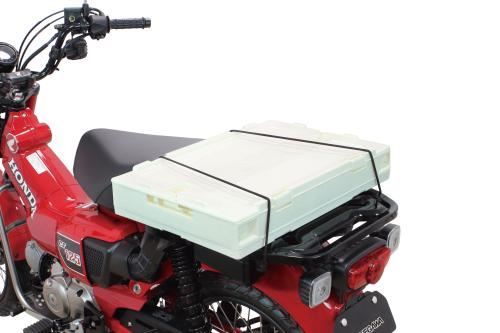

The container is a "foldable container" that can be folded when not in use. In addition to the top opening, the container has two side windows, allowing items to be loaded and unloaded from the sides.
All openings have a slide lock function. Furthermore, there is a lock function to secure the inside of the container.
Includes 2 SP Takegawa stickers (M size)

■Compatible Models
CT125 (JA55-1000001~/JA65-1000001~)

■Specifications
Container Size: Outer dimensions 525mm x 365mm x 340mm
Inner dimensions: 485mm x 332mm x 310mm
Folded thickness: 100mm
Side window (long side): 380mm x 160mm
Side window (short side): 215mm x 180mm
Body weight: Approximately 3kg
Permissible weight: 20kg (static load)
Color: White
Set contents: 2 SP Takegawa stickers (M size)

■Notes
*This is a dedicated set for CT125 (JA55/JA65).
*When installing this product on the vehicle, it will be necessary to drill holes in the foldable container.
*A paper pattern for SP Takegawa's recommended position is included (the paper pattern allows the container to be placed horizontally and the SP Takegawa Backrest Kit to be installed simultaneously). Please use it as a reference for drilling locations.
*The permissible load of the container should be within the permissible load of the carrier installed on the vehicle.
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware of this.
