Cargo Container Set Black 20L

【Takegawa 08-01-0195 Carrier Container Set Black 20L Universal Motorcycle Custom Foldable TAKEGAWA】
■Product Description

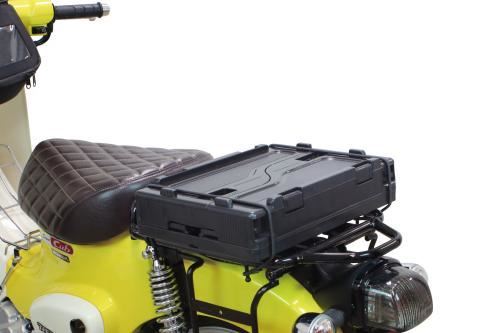

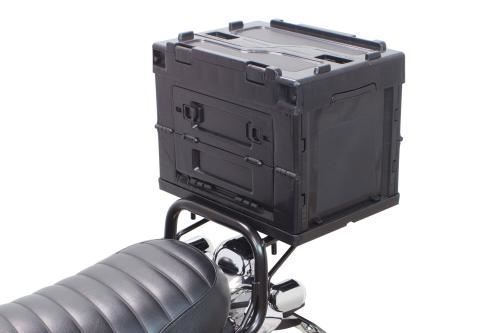

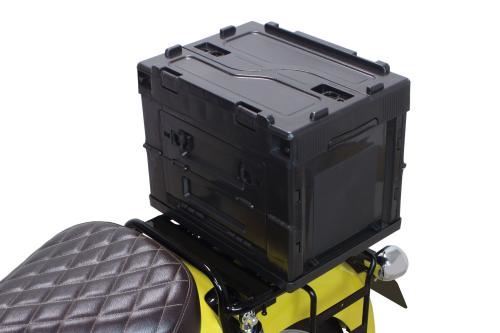

The "Carrier Container Set 20L" allows you to attach a 20L foldable container to your genuine carrier or SP Takegawa rear carrier.

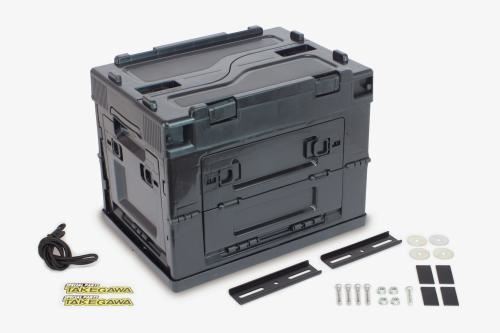

This product includes a bracket set to secure the container to the carrier, and a 20L foldable container.
The screw fixing points have elongated holes, increasing the freedom of fixing positions. In addition, the brackets are folded to enhance strength and prevent deformation due to tightening.
The main body of the bracket is made of steel with a black painted finish.
The kit includes large diameter washers to enhance the contact surface between the container and carrier when tightened, and rubber plates and elastic cords to prevent shaking and displacement of the box due to vibration.

【Foldable Container 20L】
The container is a "foldable container" that can be folded when not in use.

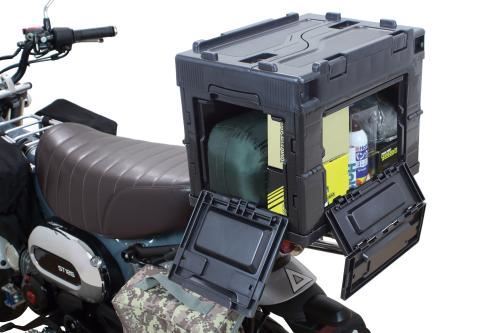

In addition to the top opening, the container has two side windows, allowing items to be loaded and unloaded from the sides. All openings have a slide lock function.

【Confirmed Compatibility】
Super Cub 50 (AA09) genuine carrier (template for drilling position included)
Super Cub 110 (JA44/JA59) genuine carrier (template for drilling position included)
Cross Cub 50 (AA06) genuine carrier (template for drilling position included)
Cross Cub 110 (JA45/JA60) genuine carrier (template for drilling position included)
Super Cub C125 (JA48/JA58) genuine carrier
GROM (JC92) with SP Takegawa rear carrier
Monkey 125 (JB02/JB03) with SP Takegawa large rear carrier
Dax 125 (JB04) with SP Takegawa rear carrier
Rebel 250 (MC49) with SP Takegawa rear carrier

■Compatible Models
Universal

■Specifications
Outer dimensions: 357mm x 255mm x 284mm
Inner dimensions: 322mm x 225mm x 255mm
Folded thickness: 90mm
Side window (long side): 220mm x 146mm
Side window (short side): 165mm x 146mm
Body weight: Approx. 1.5kg
Permissible load: 20kg (static load)
Color: Black
Set contents: SP Takegawa sticker (S size) x 2

■Notes
※When installing this product on a vehicle, it is necessary to drill holes in the foldable container.
※A template for SP Takegawa recommended positions is included (the template is for SP Takegawa confirmed vehicles Super Cub 50/110 and Cross Cub 50/110). Please refer to it as a reference drilling position.
※Even with vehicles equipped with a carrier, if the space between the carrier and the body is narrow, the bracket cannot be installed. For CT125 (JA55/JA65), we recommend the dedicated 50L set product.
※Vehicles confirmed as incompatible (cannot be installed due to narrow space between carrier and body) → Super Cub 50 (AA04), Super Cub 110 (JA10), Cross Cub (JA10).
※If using on vehicles other than those confirmed by SP Takegawa, please check the dimensions of the bracket and the space under the carrier of the vehicle before purchasing.
※The permissible load of the container should be within the permissible load of the carrier installed on the vehicle.
※The image is for illustration purposes only. It includes products of different sizes and colors.
※Product design and specifications may change without notice. Please understand.
