Carrier Container Set Olive Drab 20L

【Takegawa 08-01-0197 Carrier Container Set Olive Drab 20L Universal Motorcycle Custom Foldable TAKEGAWA】
■Product Description

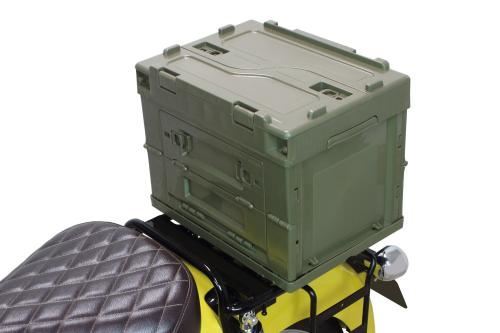

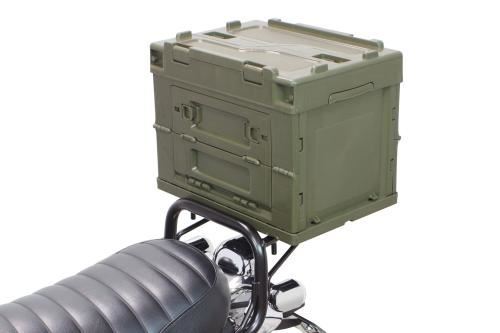

The "Carrier Container Set 20L" allows you to attach a 20L foldable container to genuine carriers or SP Takegawa rear carriers.

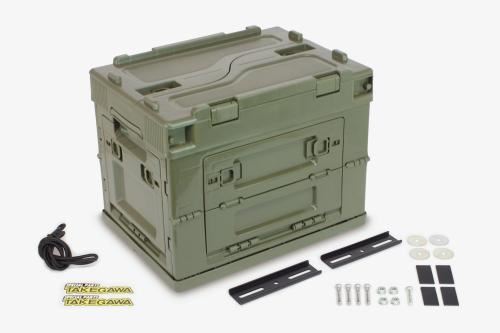

This product is a set that includes a stay kit to secure the container to the carrier and a 20L foldable container.
The screw fixing points have elongated holes to increase the freedom of fixing positions. In addition, the stay is folded to increase strength and prevent deformation due to tightening.
The stay body is made of steel with a black painted finish.
The kit includes large diameter washers to enhance the contact surface between the container and the carrier when tightening, and rubber plates and elastic cords to prevent shaking and displacement of the box due to vibration.

【20L Foldable Container】
The container is a "foldable container" that can be folded when not in use.

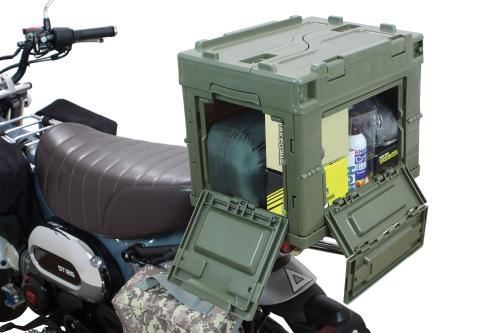

The container has two side windows in addition to the top opening, allowing items to be loaded and unloaded from the sides. All openings have a slide lock function.

【Confirmed Compatibility】
Super Cub 50 (AA09) genuine carrier (template for drilling position included)
Super Cub 110 (JA44/JA59) genuine carrier (template for drilling position included)
Cross Cub 50 (AA06) genuine carrier (template for drilling position included)
Cross Cub 110 (JA45/JA60) genuine carrier (template for drilling position included)
Super Cub C125 (JA48/JA58) genuine carrier
GROM (JC92) equipped with SP Takegawa rear carrier
Monkey 125 (JB02/JB03) equipped with SP Takegawa large rear carrier
Dax 125 (JB04) equipped with SP Takegawa rear carrier
Rebel 250 (MC49) equipped with SP Takegawa rear carrier

■Compatible Models
Universal

■Specifications
Outer dimensions: 357mm×255mm×284mm
Inner dimensions: 322mm×225mm×255mm

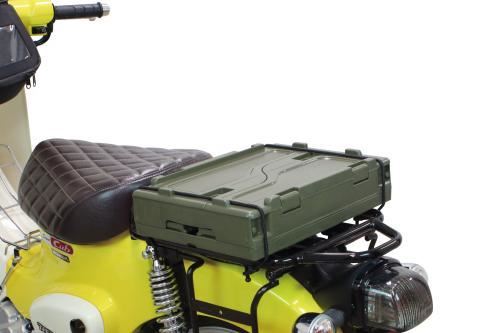

Thickness when folded: 90mm
Side window (long side): 220mm×146mm
Side window (short side): 165mm×146mm
Body weight: Approx. 1.5kg
Permissible weight: 20kg (static load)
Color: Olive Drab
Set contents: 2 SP Takegawa stickers (S size)

■Notes
*When installing this product on a vehicle, drilling into the foldable container is required.
*A template for SP Takegawa's recommended position is included (the template is for SP Takegawa confirmed vehicles Super Cub 50/110 and Cross Cub 50/110). Please use it as a reference for drilling positions.
*Even if the vehicle has a carrier, if the space between the carrier and the body is narrow, the stay cannot be installed. For CT125 (JA55/JA65), we recommend the 50L dedicated set product.
*Vehicles confirmed incompatible (due to narrow space between carrier and body, cannot be installed): Super Cub 50 (AA04), Super Cub 110 (JA10), Cross Cub (JA10).
*When using on vehicles other than those confirmed by SP Takegawa, please check the dimensions of the stay and the space under the carrier of the vehicle to be installed before purchasing.
*The permissible load of the container should be within the permissible load of the carrier installed on the vehicle.
*The image is for illustrative purposes only. It includes products of different sizes and colors.
*Product design and specifications are subject to change without notice. Please understand.
