Adjustable Handle Brace Black φ22.2mm

【Takegawa 08-01-0212 Adjustable Handle Brace Black φ22.2mm Universal Motorcycle Custom TAKEGAWA】
■Product Description

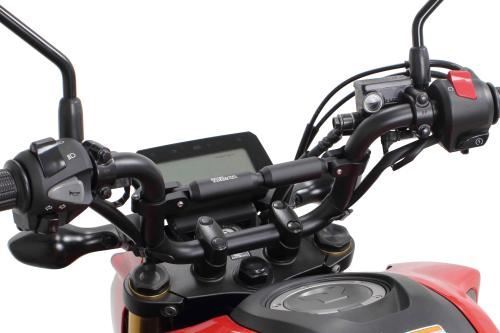

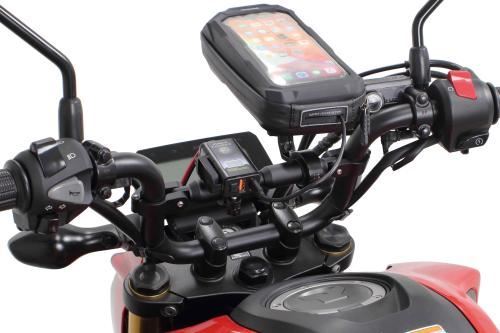

By installing this product on the target handle pipe, it can be used as a multi-clamp bar for attaching mobile holders, navigations, cameras, etc.

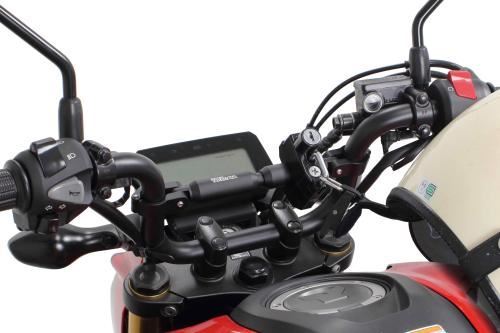

The clamp part uses the same handle pipe diameter as general handlebars, φ22mm to φ22.2mm, making it possible to fix many handlebar clamp type helmet holders and meters. Also, since the clamp width of the brace is adjustable, it is compatible with many genuine and custom handle pipes.
Furthermore, the clamp part uses a hinged type that opens and closes, making it easy to install without removing the handle pipe.
Applicable Handle Pipe: φ22mm to φ22.2mm

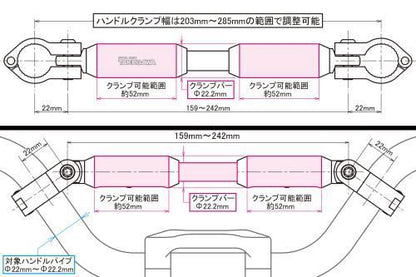

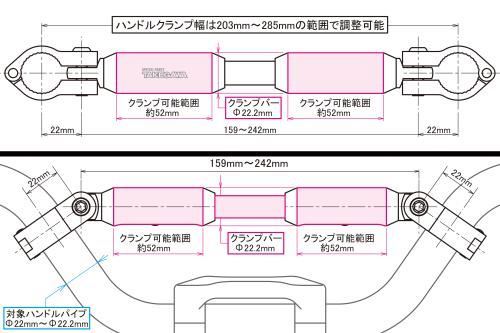

Handle Clamp Width: With the handle brace straightened, the distance between the clamps can be continuously adjusted within the range of 203mm to 285mm.
The clippable range of the multi-clamp bar section (φ22.2) of the handle brace is approximately 52mm wide in two separate locations.
The main body is precisely machined from aluminum, shot blasted on the surface, and then color anodized.
Features SP Takegawa logo.

【SP Takegawa Compatible Handle Pipes】
The following handle pipes can be simultaneously equipped with the adjustable handle brace.
・Aluminum Middle Up Handle Type-2 (Gold Anodized)
Universal Part No.: 06-01-2503
・Steering Handle (Plain)
Universal Part No.: 06-01-2002
・Aluminum Middle Up Handle Type-3
Universal Part No.: 06-01-2528 ～ 2531
・Aluminum Steering Handle
For GROM, Monkey 125, Dax 125
Part No.: 06-01-2511 ～ 2514
・Aluminum Steering Handle
For Z125 Part No.: 06-01-2515 ～ 2518
・Steering Handle (Plain)
For PCX/PCX150 Part No.: 06-01-2004
・Aluminum Steering Handle (Low Type/Black)
For GROM Part No.: 06-01-2520
・Aluminum Steering Handle (Low Type/Black)
For Gixxer (NG4BG) Part No.: 06-01-2524
・Steering Handle Pipe
(For Little Cub / Bar Handle Kit)
Part No.: 06-01-217

■Compatible Models
Universal φ22mm to φ22.2mm Handle Pipes
Clamp width 203mm to 285mm when straightened
SP Takegawa Installation Confirmed Vehicles
　GROM (JC61/JC75/JC92)
　Monkey 125 (JB02/JB03/JB05)
　Dax 125 (JB04/JB06)
　CT125 (JA55/JA65)
　Ape/Ape100
　XR50/100 Motard
　PCX (JF81・JK05-1000001～1199999)
　PCX150 (KF30)
　PCX160 (KF47-1000001～1199999)
　XSR125 (BVF1)
　Z125 PRO (BR125H)
　Eliminator (8BL-EL400A)

■Specifications
Size: φ22.2mm
Color: Black

■Notes
※This product is intended for use as a multi-clamp bar for fixing mobile holders, navigations, etc.
※It is insufficient for improving handle pipe rigidity or protecting the handle during a fall. Please be aware of this in advance.
※Do not apply excessive load. It cannot be used as a securing device during vehicle transport, etc.
※Images are for illustration purposes only. Includes products with different sizes and colors.
※Product design and specifications may change without notice. Please understand.
