Battery Charger & Maintainer OptiMATE 4 Quad Program Universal

【SP Takegawa 08-02-0044 Battery Charger & Maintainer OptiMATE 4 Quad Program Universal Optimate Charging Maintenance Takegawa】
■Product Description
This product can charge and maintain batteries for motorcycles, ATVs, jet skis, snowmobiles, light automobiles, etc., and by keeping it connected, it can maintain the battery in an optimal state.
Its compact body takes up little space and can be used in entryways, garages, and other locations.
To use, connect it to an outlet, connect the battery and charger, and select a charging program.
It can charge 12V (4-60Ah) lead-acid batteries and 12.8V/13.2V (2-15Ah) lithium iron phosphate batteries.
This product has four built-in charging programs, allowing you to charge by selecting the target specification during charging.
Equipped with various protection functions, it can be used safely even when connected for long periods (24 hours a day, 365 days a year).
Regardless of short or long term, if you store a vehicle with a battery in the garage, you can maintain the battery in an optimal state by always keeping this product connected.
●Input: 100-240Vac 50-60Hz
*For recovery charging of lead-acid batteries, the minimum charging start voltage is 0.5V or higher. Lead-acid batteries below 0.5V are not suitable for charging.
●For lithium iron phosphate batteries, recovery charging can be performed even when over-discharged, and BMS reset (current accumulation value initialization) is performed simultaneously.
*This product is splash-proof. It is not completely waterproof.
*Operating ambient temperature: up to -40℃

■Detailed Description
●Four built-in charging programs (with memory function)
This product has four built-in charging programs. When charging, confirm the type of target battery and charging method, and select one of the built-in charging programs to charge.
The selected charging program is stored in the charger's memory, so there is no need to reconfigure it when charging with the same specifications again.
●Charging Program 1: Select when charging a lead-acid battery with a normal connection (using battery clips or comfort eyelets).
●Charging Program 2: Select when charging a lead-acid battery with a Can-bus connection (using a 12V DIN Hella socket).
*SP Takegawa does not handle 12V DIN Hella sockets.
●Charging Program 3: Select when charging a lithium iron phosphate battery with a normal connection (using battery clips or comfort eyelets).
●Charging Program 4: Select when charging a lithium iron phosphate battery with a Can-bus connection (using a 12V DIN Hella socket).
*SP Takegawa does not handle 12V DIN Hella sockets.

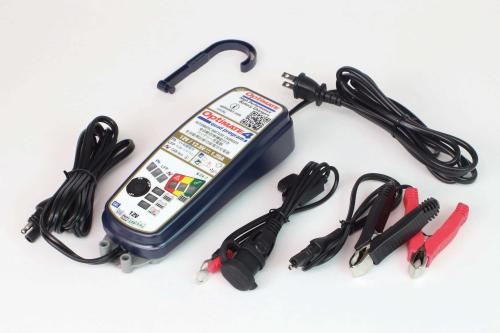

●Battery clips and comfort eyelets included for battery connection

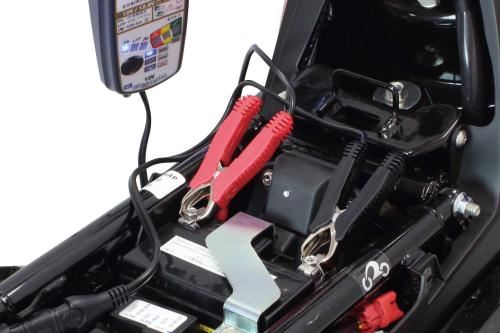

Battery clips: Clip the battery terminals to charge without removing the genuine battery or genuine eyelets.

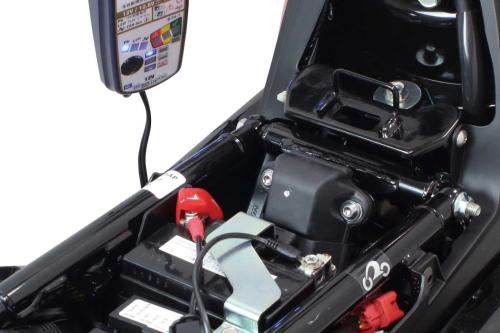

Comfort eyelets: Fix the included comfort eyelets to the battery terminals along with the genuine eyelets connected to the battery terminals to charge.
By making the comfort eyelets accessible from under the motorcycle seat or cowling, you can connect the charger's connector without removing exterior parts, making battery charging and maintenance easy.
The comfort eyelets are detachable, allowing you to leave the wiring on the vehicle.
Equipped with a fuse and fuse box.
●Recovery of over-discharged lithium iron phosphate batteries and BMS reset possible
For lithium iron phosphate batteries, recovery charging can be performed even when over-discharged, and BMS reset (current accumulation value initialization) is performed simultaneously.
*For recovery charging of lead-acid batteries, the minimum charging start voltage is 0.5V or higher. Lead-acid batteries below 0.5V are not suitable for charging.
●Equipped with turbo recovery charging function
Only when charging the battery alone.
●Equipped with battery status test function

■Compatible Models
Universal (motorcycles, ATVs, jet skis, snowmobiles, light automobiles, etc.)

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please understand.
