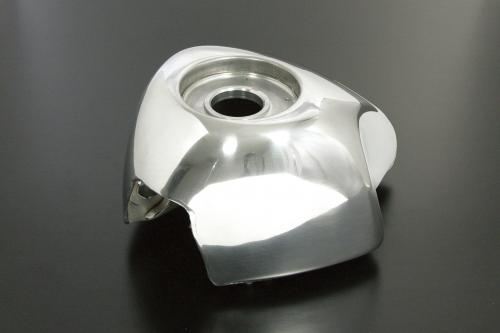

Aluminum Fuel Tank, Cobra Style, Monkey

【SP武川 09-15-0005 Aluminum Fuel Tank Cobra Style Monkey Gasoline Tank Fuel Tank Exterior Takegawa】
■Product Description

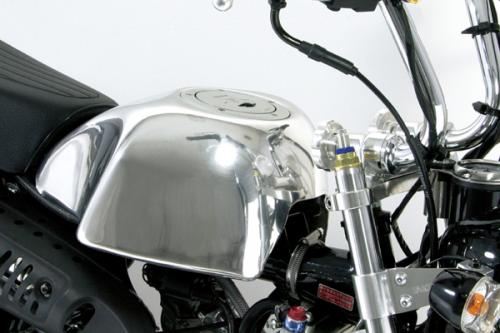

The Cobra style completely transforms the Monkey's look, giving the vehicle a wild image.
Features an airplane cap.

■Detailed Description
The Cobra style completely transforms the Monkey's look, giving the vehicle a wild image.

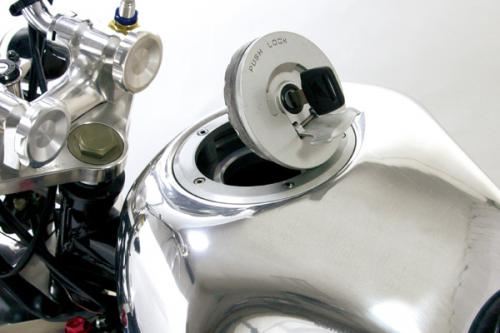

An airplane cap is used for the fuel tank cap.
With the airplane cap specification, the tank cap is not installed protruding from the tank like a standard cap. Instead, the tank shape and cap are integrated, and the cap is fixed when opened, allowing for refueling without removing the tank cap.
Additionally, a drain pipe is built in, so even if gasoline is accidentally spilled or rainwater enters around the filler opening, it will be discharged from beside the fuel cock through this drain pipe.
*The following Honda genuine parts (cap COMP, blank key, bolts) must be purchased separately.
Honda Genuine Part Numbers
Cap COMP. Fuel Filler: 17620-NX2-003 (HRC dealer)
Blank Key No. 1: 35121-KW3-771 (HRC dealer)
Bolt/Socket 4x23: 90074-ML7-920 x 3 pieces

■Compatible Models
HONDA
6V Monkey (Z50J-1300017 to 1805927)
12V Monkey (Z50J-2000001 to)/(AB27-1000001 to 1899999)

■Specifications
Type: Cobra Style
Material: Aluminum, natural buff finish
Capacity: 5.3L
Included accessories: Fuel cock body gasket, TAKEGAWA original convex emblem (3D emblem)

■Notes
*The image is for illustration purposes only. It includes products with different sizes and colors.
*Product designs and specifications are subject to change without notice. Please be aware of this.
*When an airplane cap is installed, the main key and the tank cap key will be separate.
*Do not combine carburetors that are listed as incompatible in the carburetor compatibility chart.
