Aluminum Fuel Tank Airplane G-Style Gorilla

【SP武川 09-15-0006 Aluminum Fuel Tank Airplane G-Style Gorilla Gas Tank Fuel Tank Exterior Takegawa】
■Product Description

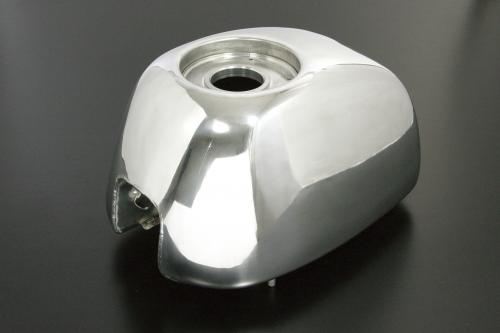

The G-Style adopts a more compact shape based on the Gorilla's stock fuel tank.
Features an airplane cap specification.

■Detailed Description
The G-Style adopts a more compact shape based on the Gorilla's stock fuel tank.

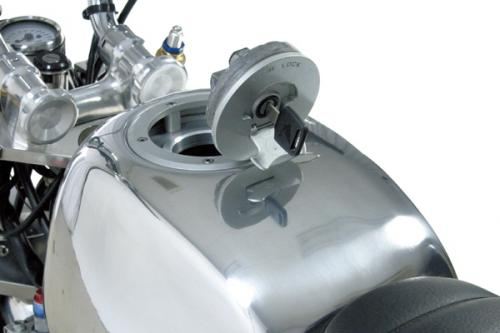

With the airplane cap specification, the tank cap is not installed in a protruding state from the tank like the stock one; instead, the tank shape and cap are integrated, and the cap is fixed when opened and closed, allowing refueling without removing the tank cap.
In addition, a drain pipe for water drainage is built in, so even if gasoline is accidentally spilled or rainwater enters the area around the fuel filler, it will pass through this drain pipe and be discharged from the side of the fuel cock.
*The following Honda genuine parts (cap COMP, blank key, bolt) must be purchased separately.
Honda Genuine Part Numbers
Cap COMP. Fuel Filler: 17620-NX2-003 (HRC dealer)
Blank Key NO.1: 35121-KW3-771 (HRC dealer)
Bolt/Socket 4x23: 90074-ML7-920 x 3 pcs

■Compatible Models
HONDA
6V Gorilla (Z50J-1300017 to 1805927)
12V Gorilla (Z50J-2500001 to )/(AB27-1000001 to 1899999)

■Specifications
Type: G-Style
Material: Aluminum with natural buff finish
Capacity: Airplane cap specification 7.0L
Accessories: Fuel cock body gasket, TAKEGAWA original convex emblem (3D emblem) included

■Notes
*The image is for illustration purposes only. It includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware of this.
*When the airplane cap is installed, the main key and the tank cap key will be separate.
*If using the G-Style on a Monkey, a genuine Gorilla seat or an SP Takegawa TL seat must be purchased separately.
*Do not use combinations of carburetors that are listed as incompatible in the carburetor compatibility chart.
